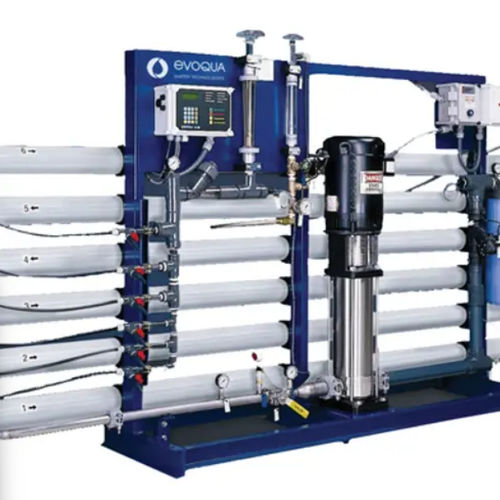

Reverse osmosis desalinator-fresh water generator Vantage® M43

for microelectronics manufacturingfor industryfor the food and beverage industry

Overview
Vantage® M43 reverse osmosis (RO) units are pre-engineered, pre-assembled and factory-tested single-pass systems intended for small industrial and commercial applications. RO membranes typically remove 90–99.9% of suspended and dissolved solids, delivering high-quality process water with minimal installation time.

Key Benefits

• Compact footprint to reduce plant floor area
• Fast delivery and reduced project lead time
• Clean-in-place connections for easy maintenance
• Factory testing at an ISO9001 certified facility

Description
The Vantage® M43 series uses 4-inch single-pass RO membrane technology and low-energy TFC membranes to provide reliable salt rejection for process water applications. Units are supplied with simple utility connections, microprocessor control and are optimized for quick on-line commissioning. Typical end markets include Power, General Industry, Food & Beverage, Pharmaceutical, Microelectronics, Solar, Data Centers and commercial facilities.

Features

• Low-energy TFC membranes for optimized permeate quality
• High-pressure stainless steel feed pump
• Non-code FRP RO pressure vessels
• Microprocessor controller with user-friendly interface
• PVC/PP piping for low-pressure feed, permeate and concentrate lines
• Dry contacts for pretreatment and storage tank level interlocks
• All alarms and shutdowns indicated on the control panel

Technical Specifications

• Maximum flow rate: 23 gpm
• Minimum flow rate: 10 gpm
• Nominal recovery rate: 75%
• Number of passes: One
