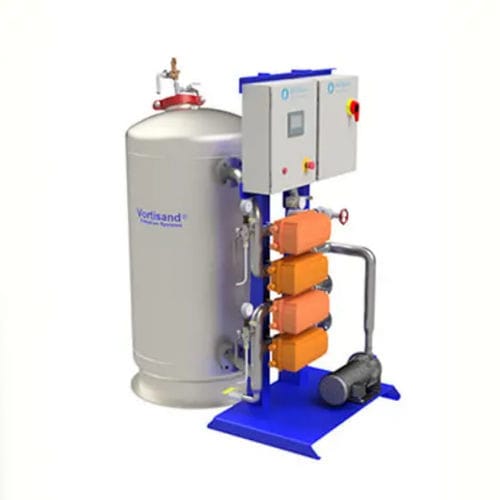

Hydrodynamic filtration system Vortisand® VC-Series

particulatesandfor coolant

Overview
The Vortisand® C-Series is a microsand filtration system engineered for commercial cooling loops, including HVAC, data centers, central utility plants, hospitals and district energy facilities.

Description
The Vortisand C-Series combines cross-flow hydraulics with STRATA HDX™ microsand media to deliver submicron particulate removal at high flux rates. The design enables filtration up to 5× the rate of conventional media filters while achieving particle capture 10–50× finer, reducing fouling and preserving heat-transfer efficiency.

Key benefits

• Limits fouling and biofouling in cooling loops to maintain system heat-transfer performance
• Submicron filtration removes fine particles responsible for equipment contamination
• Footprint and weight up to 75% smaller than traditional multimedia filters
• Lower operating water use—approximately 50% less backwash water compared with conventional filters

Features

• High flux operation up to 25 gpm/ft²
• Automated, self-backwashing operation for continuous performance
• Simplified pump skid layout to ease integration
• ASME-certified pressure vessels and integrated pressure-relief system for operational safety
• STRATA HDX™ media for submicron performance
• PLC-based controls for monitoring, control and troubleshooting
• Separate enclosures for high- and low-voltage electronics to improve safety

Maximum filtration capacity

• VC-50 - 50 gpm
• VC-75 - 75 gpm
• VC-100 - 100 gpm
• VC-140 - 140 gpm
• VC-350 - 350 gpm
• VC-600 - 600 gpm

Specifications

• Filtration media: STRATA HDX™ microsand for submicron removal
• Maximum operational flux: up to 25 gpm/ft²
• Backwash: automated self-backwash; low backwash flux (≈50% less water vs. traditional filters)
• Controls: PLC-based monitoring, control and diagnostics
• Safety: ASME-certified pressure vessels and integrated pressure-relief
• Electrical: dedicated enclosures for high- and low-voltage electronics
• Relative size/weight: up to 75% smaller and lighter vs. traditional multimedia filters
• Applications: commercial cooling loops, HVAC, data centers, central utility plants, hospitals, district energy facilities
• Available flows: VC-50, VC-75, VC-100, VC-140, VC-350, VC-600
