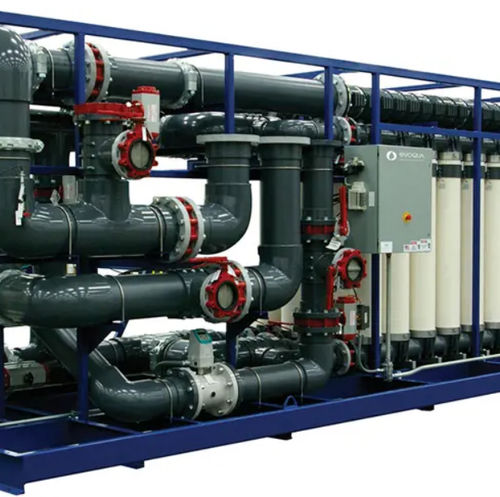

Membrane ultra-filtration unit UFI

strainerskidfor water

Overview
Vantage UFI ultrafiltration (UF) membrane systems from Evoqua provide modular filtration solutions for removal of suspended solids and organic impurities across industrial water streams. Mid-range configurations (4, 8 and 12-module racks) are sized to treat 13.5–61 m3/h (60–270 gpm). Systems are available as completely skidded packages and can be configured for higher flow requirements.

Benefits

• Protect downstream equipment (e.g. RO) by reducing fouling and extending service life
• UF membranes deliver a physical barrier to remove suspended solids and particulates
• Consistent permeate quality regardless of feed-water variability
• Typical SDI values below 2 for improved downstream performance
• Reduced footprint, lower chemical usage and less waste, decreasing operating costs

Features

• Modular 4/8/12-module rack configurations for scalable capacity
• UF membranes provide a verifiable, physical separation barrier
• Automated control options: Evoqua or Allen-Bradley packages with HMI touchscreen
• Manual or automatic backwash strainer options
• Completely automated backwash and chemical-enhanced backwash (CEB) capabilities
• VFD-controlled feed pumps for operational ease and energy savings
• Skid-mounted design for short lead time and simplified installation

Technical specifications

• Mid-range flow: 13.5–61 m3/h (60–270 gpm)
• System flow range (example configurations): Minimum 250 gpm (≈57 m3/h), Maximum 2150 gpm (≈489 m3/h)
• Module configurations: 4, 8, 12-module racks
• Typical SDI: < 2
