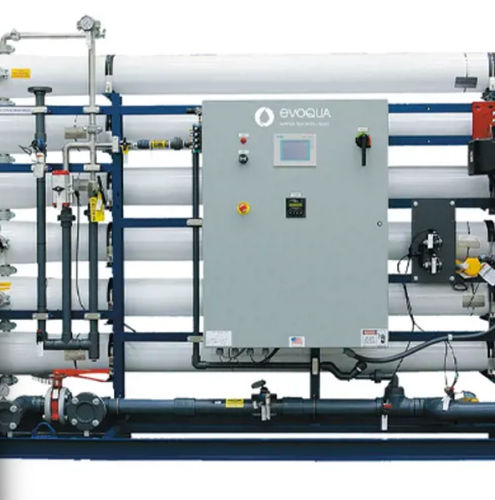

Industrial water purification unit Vantage® M83

reverse osmosiscompact

Overview Vantage® M83 Reverse Osmosis (RO) units are pre-engineered and pre-assembled single-pass units designed for a variety of industrial and commercial applications. RO membranes typically remove 90–99.9% of suspended and dissolved solids. M83 units are single-pass RO systems.

Key benefits

• Compact footprint saves valuable floor space
• Quick equipment delivery keeps project timelines on track
• Clean-in-place (CIP) connections maximize system serviceability
• Comprehensive factory testing performed at our ISO9001 certified facility

Description Vantage® M83 units are packaged single-pass 8-inch reverse osmosis units engineered for industrial applications that require reliable water purification with fast delivery and competitive pricing. These pre-engineered, pre-assembled and factory-tested units minimize installation and start-up time. With simple utility connections and an easy-to-set-up control interface, the unit is ready for rapid commissioning. The Vantage® M83 unit is available in four models: Economy (E), Plus (P), Deluxe (D) and Select (S).

Features

• Choice of brackish-water or low-energy TFC membranes (400 ft²) to ensure targeted water quality
• High-pressure 316 stainless steel vertical multistage feed pump
• ASME Code FRP RO pressure vessels with pressure-relief protection
• PVC low-pressure feed, product and reject piping; 316L stainless steel high-pressure piping
• Industrial coated carbon steel frame (304 stainless steel frame on Select models)
• Dry contacts provided for chemical feed, pretreatment equipment, storage tank level alarms and pressure switches
• All alarm and shutdown conditions indicated on the control interface
• Tank level control via 4–20 mA signal input available on Deluxe and Select models

Specification table Flow Rate, Maximum: gpm — 90
Flow Rate, Minimum: gpm — 30
Nominal Recovery Rate — 75%
Number of Passes — One

Characteristics / technical specifications

• Product type: Packaged single-pass 8-inch reverse osmosis (RO) units
• Membrane options: Brackish-water or low-energy TFC membranes, 400 ft²
• Feed pump: High-pressure 316 stainless steel vertical multistage
• Pressure vessels: ASME Code FRP with pressure-relief protection
• Piping: PVC for low-pressure lines; 316L stainless steel for high-pressure lines
• Frame: Industrial coated carbon steel (Select models use 304 stainless steel)
• Controls: Easy-to-set-up control interface with alarm and shutdown indication
• Connections: Simple utility and CIP connections to maximize serviceability
• Factory testing: Comprehensive factory testing performed at ISO9001 certified facility
• Models available: Economy (E), Plus (P), Deluxe (D), Select (S)
• Typical solids removal: 90–99.9% of suspended and dissolved solids
• Installation: Pre-engineered and pre-assembled to minimize installation and start-up time
