Ball bearing bearing unit CBx

polyurethanechloropreneabrasion-resistant

Product Overview

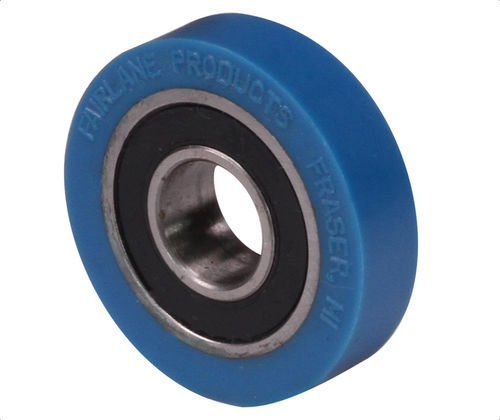

Covered bearings in the CBx series consist of a precision sealed ball bearing with a urethane or neoprene cover cast directly to the bearing. These units deliver smooth, quiet, non-marring operation for industrial conveying, guide and wheel applications. Urethane versions offer high abrasion resistance and extended service life; neoprene versions offer flame and weather resistance. Available durometers: 35, 60, 80, 85 and 95 Shore A.

Product Types

• CBx — Single bearing, urethane or neoprene cover
• CBD — Double bearing, neoprene cover

Available Parts (selected)

• 112743 | CB-03123.15-35UR | D: 0.75 in | D2: 0.187 in | W: 0.196 in | H: 0.12 in | Bearings: 1 | Bearing PN: R3-2RS | Durometer: 35 | Material: Urethane | Color: Yellow
• 112747 | CB-03123.15-60UR | D: 0.75 in | D2: 0.187 in | W: 0.196 in | H: 0.12 in | Bearings: 1 | Bearing PN: R3-2RS | Durometer: 60 | Material: Urethane | Color: Blue
• 112751 | CB-03123.15-95UR | D: 0.75 in | D2: 0.187 in | W: 0.196 in | H: 0.12 in | Bearings: 1 | Bearing PN: R3-2RS | Durometer: 95 | Material: Urethane | Color: Black
• 112759 | CB-04143.15-35UR | D: 0.88 in | D2: 0.250 in | W: 0.196 in | H: 0.12 in | Bearings: 1 | Bearing PN: R4-2RS | Durometer: 35 | Material: Urethane | Color: Yellow
• 112762 | CB-04143.15-60UR | D: 0.88 in | D2: 0.250 in | W: 0.196 in | H: 0.12 in | Bearings: 1 | Bearing PN: R4-2RS | Durometer: 60 | Material: Urethane | Color: Blue
• 112767 | CB-04143.15-95UR | D: 0.88 in | D2: 0.250 in | W: 0.196 in | H: 0.12 in | Bearings: 1 | Bearing PN: R4-2RS | Durometer: 95 | Material: Urethane | Color: Black
• 112770 | CB-041605-35UR | D: 1.00 in | D2: 0.250 in | W: 0.313 in | H: 0.15 in | Bearings: 1 | Bearing PN: 1602-2RS | Durometer: 35 | Material: Urethane | Color: Yellow
• 112776 | CB-041605-60UR | D: 1.00 in | D2: 0.250 in | W: 0.313 in | H: 0.15 in | Bearings: 1 | Bearing PN: 1602-2RS | Durometer: 60 | Material: Urethane | Color: Blue
• 112784 | CB-041605-95UR | D: 1.00 in | D2: 0.250 in | W: 0.313 in | H: 0.15 in | Bearings: 1 | Bearing PN: 1602-2RS | Durometer: 95 | Material: Urethane | Color: Black
• 136842 | CB-05185.5-60 | D: 1.125 in | D2: 0.312 in | W: 0.343 in | H: 0.12 in | Bearings: 1 | Bearing PN: 1603-2RS | Durometer: 60 | Material: Neoprene | Color: Blue

Technical Specifications

• Series: CBx (Covered Bearings)
• Mount type: Bearing mount (precision sealed ball bearing)
• Cover material: Urethane or Neoprene (cast directly to bearing)
• Operating characteristics: smooth, quiet, non-marring
• Urethane: high abrasion resistance and durability
• Neoprene: flame and weather resistance
• Available durometers: 35, 60, 80, 85, 95 (Shore A)
• Options: single (CBx) or double (CBD) bearing configurations
• Color coding commonly corresponds to durometer (e.g., Yellow = 35, Blue = 60, Black = 95)
• Common bearing references: R3-2RS, R4-2RS, 1602-2RS, 1603-2RS
• Multiple dimensional variants available (D / D2 / W / H) — see parts list for specifics
