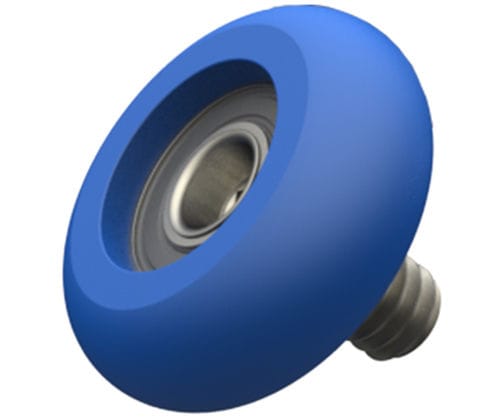

Radial bearing housing TR-C

steelstainless steelPEEK

Overview
Radial-surface bearing covers with a low-profile stud permanently swaged into the bearing for stud-mount installation. Design removes the need for a separate nut, bolt and spacer. Available with steel or stainless bearings in shielded or sealed variants. Wheel covers offered in multiple materials including 303 stainless steel, grey 70D urethane, blue nylon, polyacetal, PEEK and 1045 steel with electroless plating.

Product Types

• TR-C Bearing Covers — Stud mount, radial surface; choice of wheel cover materials and bearing configurations (steel or stainless).

Part Options

• TRC-160604-SSR4R-C — Thread 1/4-20; D 1 in; Wheel: Stainless; Bearing: Stainless, Rubber Sealed.
• TRC-160604-SSR4Z-C — Thread 1/4-20; D 1 in; Wheel: Stainless; Bearing: Stainless, Metal Shield.
• TRC-180804-SS1602R-C — Thread 1/4-20; D 1-1/8 in; Wheel: Stainless; Bearing: Stainless, Rubber Sealed.
• TRC-240908-SSR8R-C — Thread 1/2-13; D 1-1/2 in; Wheel: Stainless; Bearing: Stainless, Rubber Sealed.
• TRE-160604-R4R-C — Thread 1/4-20; D 1 in; Wheel: PEEK (tan); Bearing: Steel, Rubber Sealed.

Characteristics / Technical specifications

• Mount: Stud mount with low-profile stud permanently swaged into the bearing (no nut, bolt or spacer required).
• Surface type: Radial.
• Bearing options: steel or stainless; sealed (rubber) or shielded (metal).
• Wheel cover materials: 303 stainless steel; grey 70D urethane; blue nylon; polyacetal; PEEK; 1045 steel with electroless plating.
• Thread and size examples: 1/4-20, 5/16-18, 3/8-16, 1/2-13; diameters: 1 in, 1-1/8 in, 1-1/4 in, 1-1/2 in.
• Typical wheel surface: Radial.
