Bearing housing with ball bearing GRL-C

steelfor linear systemsfor guide rods

Product overview

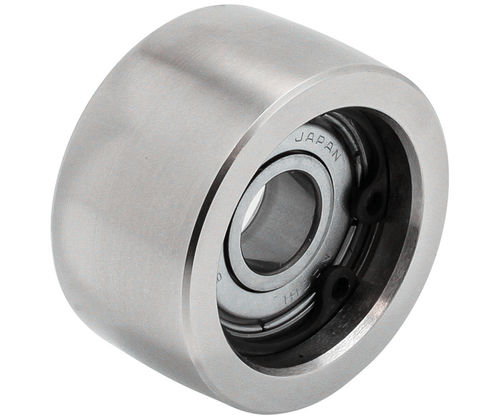

Guide roller bearing covers GRL-C feature a crown (convex) running surface and are designed for medium-duty guidance applications such as sliding doors and conveyor transport. Body material: 1045 steel. Bearing and C-type retaining ring are steel.

Product types

• GRL-C: Steel guide roller bearing cover, crown surface

Part options (table)
ID | SKU | Part Number | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | W (mm) | A (mm) | B (mm) | R (mm) | Bearing Type | Applicable Roller Pins | PN
151022 | GRL30S-C | GRL30S-C | 6 | 22 | 17 | 13 | 12 | 3.0 | 6 | 50 | 606ZZ | RLP0606, RLP06E, RLP06S |
151194 | GRL40S-C | GRL40S-C | 8 | 30 | 22 | 18 | 16 | 4.5 | 7 | 100 | 608ZZ | RLP0807F, RLP0807, RLP08E, RLP08S |
151051 | GRL50S-C | GRL50S-C | 10 | 36 | 26 | 22 | 19 | 5.5 | 8 | 100 | 6000ZZ | RLP1008F, RLP1008, RLP10E, RLP10S |
151076 | GRL60S-C | GRL60S-C | 12 | 42 | 32 | 26 | 23 | 6.5 | 10 | 150 | 6201ZZ | RLP1210F, RLP1210, RLP12E, RLP12S |
151098 | GRL70S-C | GRL70S-C | 15 | 46 | 35 | 29 | 28 | 8.5 | 11 | 200 | 6202ZZ | RLP1511, RLP15E, RLP15S |

Accessories

• GRL-BL: Guide wheel bracket (accessory for bearing covers)
• RLP, RLP-E, RLP-F series: Guide wheel pins (various types compatible with bearing covers)

Technical specifications

• Surface type: Crown (convex) running surface
• Typical applications: Medium-duty guidance — sliding doors, conveyor transportation
• Body material: 1045 steel
• Bearing material: Steel (ZZ shielded types as listed)
• Retaining ring: C-type retaining ring, steel
• Available SKUs/sizes: GRL30S-C, GRL40S-C, GRL50S-C, GRL60S-C, GRL70S-C (see Part Options table for dimensions and bearing types)
