Flat bearing housing TF series

steelstainless steelPEEK

Overview

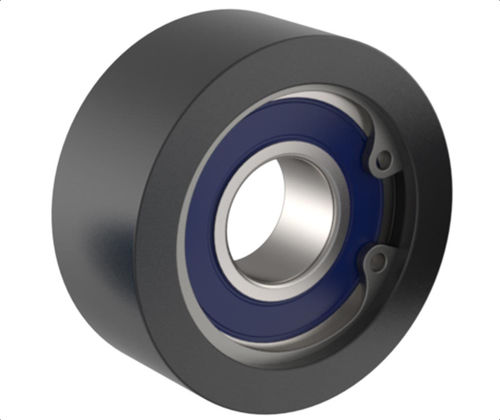

Flat-style cover designed for bearing mount on a flat surface. A single-row bearing is retained by a snap ring. Bearings available in steel or stainless steel with metal shield or rubber-sealed options. Covers produced in multiple materials to suit corrosion, abrasion, thermal or chemical resistance needs.

Part Options (table)
Header: ID | SKU | Part Number | D in | D1 in | W in | Wheel Type | Wheel Material | Wheel Color | Bearing Type | Bearing Material
135505 | TFC-120603-SSR3Z | TFC-120603-SSR3Z | 3/4 | 3/16 | 3/8 | Flat | Stainless | | Metal Shield | Stainless
135506 | TFC-140604-SSR4R | TFC-140604-SSR4R | 7/8 | 1/4 | 3/8 | Flat | Stainless | | Rubber Sealed | Stainless
135507 | TFC-140604-SSR4Z | TFC-140604-SSR4Z | 7/8 | 1/4 | 3/8 | Flat | Stainless | | Metal Shield | Stainless
135508 | TFC-160604-SSR4R | TFC-160604-SSR4R | 1 | 1/4 | 3/8 | Flat | Stainless | | Rubber Sealed | Stainless
135509 | TFC-160604-SSR4Z | TFC-160604-SSR4Z | 1 | 1/4 | 3/8 | Flat | Stainless | | Metal Shield | Stainless
135510 | TFC-160804-SS1602R | TFC-160804-SS1602R | 1 | 1/4 | 1/2 | Flat | Stainless | | Rubber Sealed | Stainless
135511 | TFC-180804-SS1602R | TFC-180804-SS1602R | 1-1/8 | 1/4 | 1/2 | Flat | Stainless | | Rubber Sealed | Stainless
135512 | TFC-200804-SS1602R | TFC-200804-SS1602R | 1-1/4 | 1/4 | 1/2 | Flat | Stainless | | Rubber Sealed | Stainless
135513 | TFC-200905-SS1603R | TFC-200905-SS1603R | 1-1/4 | 5/16 | 9/16 | Flat | Stainless | | Rubber Sealed | Stainless
135514 | TFC-200906-SS1604R | TFC-200906-SS1604R | 1-1/4 | 3/8 | 9/16 | Flat | Stainless | | Rubber Sealed | Stainless

Available cover materials

• 303 stainless steel (corrosion resistant)
• Grey 70D urethane (abrasion resistant)
• Blue nylon (thermal and chemical resistant)
• Polyacetal (general-use)
• PEEK (high strength; good resistance to high temperature and chemicals)
• 1045 steel with electroless plating (general use)

Wheel and bearing options

• Single-row bearing retained by snap ring
• Bearing types available: steel, stainless; protections: metal shield or rubber sealed
• Wheel type shown: Flat

Technical specifications

• Mount: Bearing mount for flat surface
• Bearing retention: Snap ring retains a single-row bearing
• Bearing types: steel and stainless options; shielding: metal shield or rubber sealed
• Wheel material (examples listed): Stainless; covers available in multiple polymers and metals as listed above
• Included part numbers (examples from this series): TFC-120603-SSR3Z, TFC-140604-SSR4R, TFC-140604-SSR4Z, TFC-160604-SSR4R, TFC-160604-SSR4Z, TFC-160804-SS1602R, TFC-180804-SS1602R, TFC-200804-SS1602R, TFC-200905-SS1603R, TFC-200906-SS1604R
• Dimensions range (from table): D = 3/4 to 1-1/4 inches; D1 = 3/16 to 3/8 inches; W = 3/8 to 9/16 inches
