Flat bearing housing GRL-F

ball bearingsteelcarbon steel

Product description

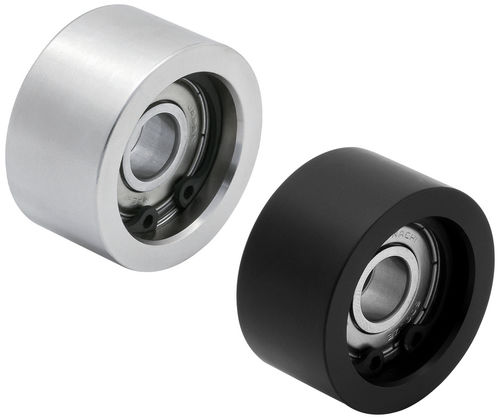

These bearing cover guide rollers feature a flat surface, suitable for medium-duty applications such as sliding doors and conveyor transport. Bodies are available in 1045 steel or black polyacetal (POM). Bearing and C-type retaining ring are steel.

Product types

• GRL-F — Steel or plastic, bearing mount
• GRL-P-F — Plastic, bearing mount or stud

Part options (table)

• Header: ID | SKU | Part Number | Material | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | W (mm) | A (mm) | B (mm) | Bearing Type | Applicable Roller Pins
• 151010 | GRL30J-F | GRL30J-F | Plastic | 6 | 22 | 17 | 13 | 12 | 3.0 | 6 | 606ZZ | RLP0606, RLP06E, RLP06S
• 151023 | GRL30S-F | GRL30S-F | Steel | 6 | 22 | 17 | 13 | 12 | 3.0 | 6 | 606ZZ | RLP0606, RLP06E, RLP06S
• 151038 | GRL40J-F | GRL40J-F | Plastic | 8 | 30 | 22 | 18 | 16 | 4.5 | 7 | 608ZZ | RLP0807F, RLP0807, RLP08E, RLP08S
• 151195 | GRL40S-F | GRL40S-F | Steel | 8 | 30 | 22 | 18 | 16 | 4.5 | 7 | 608ZZ | RLP0807F, RLP0807, RLP08E, RLP08S
• 151041 | GRL50J-F | GRL50J-F | Plastic | 10 | 36 | 26 | 22 | 19 | 5.5 | 8 | 6000ZZ | RLP1008F, RLP1008, RLP10E, RLP10S
• 151052 | GRL50S-F | GRL50S-F | Steel | 10 | 36 | 26 | 22 | 19 | 5.5 | 8 | 6000ZZ | RLP1008F, RLP1008, RLP10E, RLP10S
• 151067 | GRL60J-F | GRL60J-F | Plastic | 12 | 42 | 32 | 26 | 23 | 6.5 | 10 | 6201ZZ | RLP1210F, RLP1210, RLP12E, RLP12S
• 151077 | GRL60S-F | GRL60S-F | Steel | 12 | 42 | 32 | 26 | 23 | 6.5 | 10 | 6201ZZ | RLP1210F, RLP1210, RLP12E, RLP12S
• 151090 | GRL70J-F | GRL70J-F | Plastic | 15 | 46 | 35 | 29 | 28 | 8.5 | 11 | 6202ZZ | RLP1511, RLP15E, RLP15S
• 151099 | GRL70S-F | GRL70S-F | Steel | 15 | 46 | 35 | 29 | 28 | 8.5 | 11 | 6202ZZ | RLP1511, RLP15E, RLP15S

Media
Specifications PDF available.
