Cylindrical bearing housing CTG series

ball bearingwith ball bearingsteel

Description

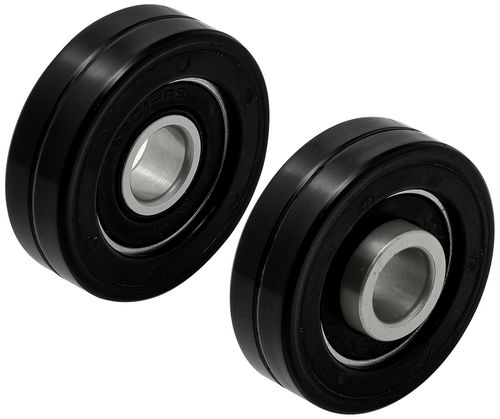

These urethane covered-bearing rollers are intended for light-load industrial applications such as sliding doors and carrier transport. The urethane tread is molded directly onto a special covered bearing to prevent separation and to provide quiet operation. Available in non-collar (A) and double-collar (B / D) configurations. Multiple covered-bearing rollers can be combined for multi-point guidance and load distribution.

Part Options (table)
ID | SKU | Part Number | Type | D (mm) | D1 (mm) | D2 (mm) | W (mm) | W1 (mm) | W2 (mm) | Special Bearing Type | Applicable Roller Pins | PN
150944 | CTG-BR20 | CTG-BR20 | A | 6 | 20 | 8.6 | 8 | 5 | - | 696-2RS | RLP0605
150945 | CTG-BR20D | CTG-BR20D | B | 6 | 20 | 8.6 | 8 | 5 | 11 | 696-2RS | RLP0611
150946 | CTG-BR25 | CTG-BR25 | A | 6 | 25 | 10.3 | 9 | 6 | - | 626-2RS | RLP0606
150947 | CTG-BR25D | CTG-BR25D | B | 6 | 25 | 9.3 | 9 | 6 | 12 | 626-2RS | RLP0611
150948 | CTG-BR30 | CTG-BR30 | A | 8 | 30 | 12 | 11 | 7 | - | 608-2RS | RLP0807
150949 | CTG-BR30D | CTG-BR30D | B | 8 | 30 | 12 | 11 | 7 | 15 | 608-2RS | RLP0813
150950 | CTG-BR35 | CTG-BR35 | A | 8 | 35 | 12 | 11 | 7 | - | 608-2RS | RLP0807
150951 | CTG-BR35D | CTG-BR35D | B | 8 | 35 | 12 | 11 | 7 | 15 | 608-2RS | RLP0813
150952 | CTG-BR40 | CTG-BR40 | A | 10 | 40 | 14 | 12 | 8 | - | 6000-2RS | RLP1008
150953 | CTG-BR40D | CTG-BR40D | B | 10 | 40 | 14 | 12 | 8 | 16 | 6000-2RS | RLP1016

Media
Specifications PDF is available for this product.

Technical specifications

• Application: light-load urethane rollers suitable for sliding doors and carrier transport
• Urethane surface molded directly to the covered bearing to prevent separation
• Quiet operation due to urethane body
• Available in non-collar (A) and double-collar (B / D) versions
• Multiple covered-bearing rollers can be used together in combination for multi-point support
• Body material: dark brown polyurethane, Shore hardness A95
• Bearing: steel, double rubber-sealed (e.g. 696-2RS, 626-2RS, 608-2RS, 6000-2RS)
• Multiple part options with specific dimensions and applicable roller pins listed in the Part Options table above
• Specifications document available (PDF)
