Bearing protective cover GRL-P-U

Product description

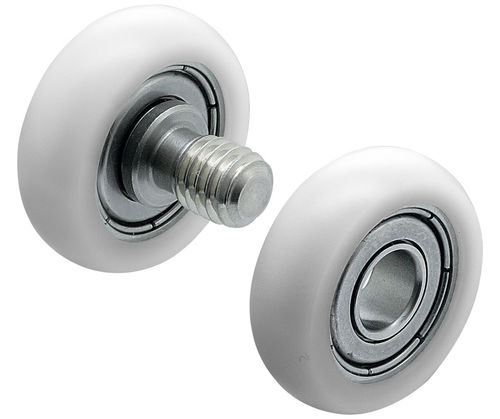

These bearing cover guide rollers feature a radial surface and accommodate a single bearing. They are offered with either a bearing mount or as a stud-mounted version. The white polyacetal (POM) body provides low-noise operation. Bearings and studs are stainless steel.

Available variants

• GRL1304P-U-SUS — Type A, D 13 mm, Bearing SMR104ZZ, Allowable load 11.0 N
• GRL13M4P-U-SUS — Type B, D 13 mm, Thread M4x0.70, Bearing SMR104ZZ, Allowable load 11.0 N
• GRL1404P-U-SUS — Type A, D 14 mm, Bearing SMR104ZZ, Allowable load 11.0 N
• GRL14M4P-U-SUS — Type B, D 14 mm, Thread M4x0.70, Bearing SMR104ZZ, Allowable load 11.0 N
• GRL1805P-U-SUS — Type A, D 18 mm, Bearing 695HZZ, Allowable load 15.4 N
• GRL18M4P-U-SUS — Type B, D 18 mm, Thread M4x0.70, Bearing 695HZZ, Allowable load 15.4 N
• GRL1905P-U-SUS — Type A, D 19 mm, Bearing 695HZZ, Allowable load 15.4 N
• GRL1906P-U-SUS — Type A, D 19 mm, B 6 mm, Bearing 696HZZ, Allowable load 22.0 N
• GRL19M4P-U-SUS — Type B, D 19 mm, Thread M4x0.70, Bearing 695HZZ, Allowable load 15.4 N
• GRL19M5P-U-SUS — Type B, D 19 mm, Thread M5x0.80, Bearing 696HZZ, Allowable load 22.0 N

Media available
Specifications (PDF), Material Properties (PDF)

Technical specifications

• Surface: radial
• Mount options: bearing mount or stud
• Body material: white polyacetal (POM) — low-noise operation
• Bearing and stud material: stainless steel
• Multiple size and thread variants available (see variants)
• Typical bearing types: SMR104ZZ, 695HZZ, 696HZZ
• Available technical PDFs: product specifications and material properties
