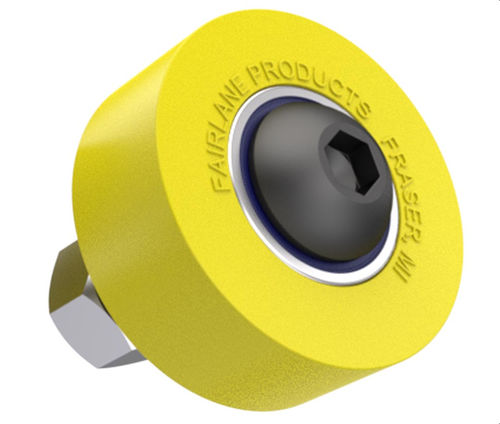

Ball bearing bearing unit MCBD-C

polyurethanesteelclosed-structure

Overview
These covered bearings feature a urethane cover cast directly to a precision sealed ball bearing, delivering smooth, quiet, non‑marring contact suitable for industrial applications. Urethane provides excellent abrasion resistance and extended service life. Hardness options (Shore A) are 35, 60 and 95. Units are supplied assembled with a button head cap screw, spacer and locknut for rapid stud‑mount installation.

Available part options (examples)
113176 | MCBD-052010-35UR-C | M5x0.80 | D 20 mm | L 25 mm | W 10 mm | Durometer 35 (Yellow) | Bearing 605-2RS
113183 | MCBD-052010-60UR-C | M5x0.80 | D 20 mm | L 25 mm | W 10 mm | Durometer 60 (Blue) | Bearing 605-2RS
113189 | MCBD-052010-95UR-C | M5x0.80 | D 20 mm | L 25 mm | W 10 mm | Durometer 95 (Black) | Bearing 605-2RS
113200 | MCBD-062512-35UR-C | M6x1.00 | D 25 mm | L 28 mm | W 12 mm | Durometer 35 (Yellow) | Bearing 606-2RS
113213 | MCBD-062512-60UR-C | M6x1.00 | D 25 mm | L 28 mm | W 12 mm | Durometer 60 (Blue) | Bearing 606-2RS
113222 | MCBD-062512-95UR-C | M6x1.00 | D 25 mm | L 28 mm | W 12 mm | Durometer 95 (Black) | Bearing 606-2RS
113224 | MCBD-083014-35UR-C | M8x1.25 | D 30 mm | L 26 mm | W 14 mm | Durometer 35 (Yellow) | Bearing 608-2RS
113230 | MCBD-083014-60UR-C | M8x1.25 | D 30 mm | L 26 mm | W 14 mm | Durometer 60 (Blue) | Bearing 608-2RS
113232 | MCBD-083014-95UR-C | M8x1.25 | D 30 mm | L 26 mm | W 14 mm | Durometer 95 (Black) | Bearing 608-2RS
113242 | MCBD-103516-35UR-C | M10x1.50 | D 35 mm | L 29 mm | W 16 mm | Durometer 35 (Yellow) | Bearing 6000-2RS

Media / Technical Documents
Technical information PDF available (product material properties, durometer chart and mounting notes).

Specifications

• Type: Covered (urethane‑covered) stud‑mount precision sealed ball bearing.
• Surface: Urethane cast to bearing for smooth, quiet, non‑marring contact.
• Durability: High abrasion resistance; suitable for repetitive contact applications.
• Hardness options: Shore A 35 / 60 / 95 (color‑coded: 35 = Yellow, 60 = Blue, 95 = Black).
• Included hardware: Button head cap screw, spacer and locknut supplied for fast installation.
• Thread / metric options: M5x0.80, M6x1.00, M8x1.25, M10x1.50.
• Bearing references: 605-2RS, 606-2RS, 608-2RS, 6000-2RS depending on size.
• Applications: Designed for non‑marring contact, quiet operation and abrasion‑resistant interfaces.
