Abrasion-resistant protective cover TF-C series

chemical-resistanthigh-temperaturefor bearings

Product overview

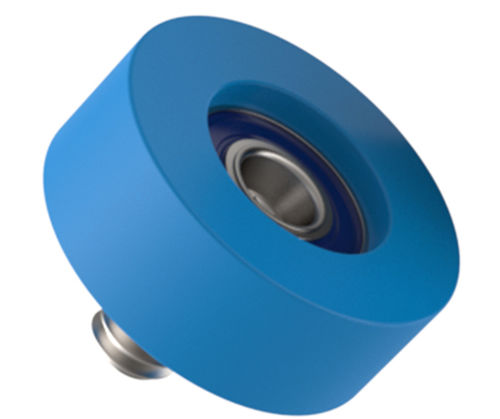

Flat-profile bearing covers with a low-profile stud mount. Wheels are supplied assembled with a stud permanently swaged into the bearing, eliminating the need for a separate nut, bolt and spacer. Bearing options include steel, stainless, shielded and sealed types. Cover/wheel materials available to address corrosion, abrasion, thermal and chemical resistance requirements: 303 stainless steel, grey 70D urethane, blue nylon, polyacetal, PEEK, and 1045 steel with electroless plating.

Product types / highlights

• Mount: Stud, permanently swaged into bearing
• Surface style: Flat
• Bearing types available: Steel, stainless, shielded, sealed (rubber sealed or metal shield)
• Wheel/cover materials: 303 stainless steel; grey 70D urethane; blue nylon (thermal & chemical resistant); polyacetal (general-use); PEEK (high strength, high temp/chemical resistance); 1045 steel with electroless plating

Part options (table)
Columns: ID | SKU / Part Number | Thread | D (in) | D2 (in) | L (in) | W (in) | W1 (in) | K | Wheel Type | Wheel Material | Wheel Color | Bearing Type | Bearing Material | PN
136205 | TFC-120603-SSR3Z-C | #10-32 | 3/4" | 19/64" | 5/16" | 3/8" | .07" | 3/32" | Flat | Stainless | | Metal Shield | Stainless |
136206 | TFC-140604-SSR4R-C | 1/4-20 | 7/8" | 3/8" | 5/16" | 3/8" | .07" | 1/8" | Flat | Stainless | | Rubber Sealed | Stainless |
136207 | TFC-140604-SSR4Z-C | 1/4-20 | 7/8" | 3/8" | 5/16" | 3/8" | .07" | 1/8" | Flat | Stainless | | Metal Shield | Stainless |
136208 | TFC-160604-SSR4R-C | 1/4-20 | 1" | 3/8" | 5/16" | 3/8" | .07" | 1/8" | Flat | Stainless | | Rubber Sealed | Stainless |
136209 | TFC-160604-SSR4Z-C | 1/4-20 | 1" | 3/8" | 5/16" | 3/8" | .07" | 1/8" | Flat | Stainless | | Metal Shield | Stainless |
136210 | TFC-160804-SS1602R-C | 1/4-20 | 1" | 3/8" | 5/16" | 1/2" | .10" | 1/8" | Flat | Stainless | | Rubber Sealed | Stainless |
136211 | TFC-180804-SS1602R-C | 1/4-20 | 1-1/8" | 3/8" | 5/16" | 1/2" | .10" | 1/8" | Flat | Stainless | | Rubber Sealed | Stainless |
136212 | TFC-200804-SS1602R-C | 1/4-20 | 1-1/4" | 3/8" | 5/16" | 1/2" | .10" | 1/8" | Flat | Stainless | | Rubber Sealed | Stainless |
136213 | TFC-200905-SS1603R-C | 5/16-18 | 1-1/4" | 1/2" | 1/2" | 9/16" | .08" | 5/32" | Flat | Stainless | | Rubber Sealed | Stainless |
136214 | TFC-200906-SS1604R-C | 3/8-16 | 1-1/4" | 9/16" | 1/2" | 9/16" | .08" | 3/16" | Flat | Stainless | | Rubber Sealed | Stainless |

Notes
Wheels are supplied assembled with a swaged stud (no separate nut/bolt/spacer required). Multiple bearing protection options (metal shield and rubber sealed) and several wheel materials are offered to match corrosion, abrasion, thermal and chemical resistance needs.

Specifications / technical data

• Model / series: TF-C
• Mount type: Stud mount (low-profile stud, permanently swaged)
• Surface: Flat
• Available threads (examples shown): #10-32, 1/4-20, 5/16-18, 3/8-16
• Typical wheel diameters (D) shown: 3/4", 7/8", 1", 1-1/8", 1-1/4"
• Typical wheel widths and dimensions: W examples include .07", .08", .10"; D2, L, W1, K provided per part number
• Wheel / cover materials: 303 stainless steel; grey 70D urethane; blue nylon; polyacetal; PEEK; 1045 steel (electroless plating)
• Bearing types available: Metal shield, Rubber sealed (sealed)
• Bearing material (examples): Stainless steel
