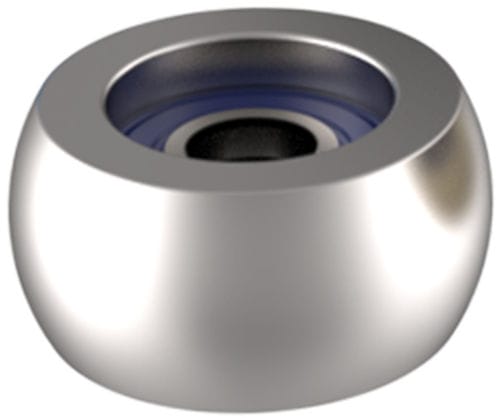

Ball bearing bearing housing TC series

stainless steelsteelPEEK

Product Overview
Crown style surface with integrated bearing mount. Single-row bearing retained by a snap ring. Available bearing types: steel and stainless, with shielded and sealed options. Covers produced in multiple materials: 303 stainless steel (corrosion resistant); grey 70D urethane (abrasion resistant); blue nylon (thermal and chemical resistant); polyacetal (general-purpose); PEEK (high strength, high temperature and chemical resistance); 1045 steel with electroless plating.

Product Types

• TC
• Bearing Covers
• Variety of wheel materials; steel or stainless bearings

Part Options (selection)
ID | SKU | Part Number | D (in) | D1 (in) | W (in) | Wheel Type | Wheel Material | Wheel Color | Bearing Type | Bearing Material | PN
135271 | TCC-120603-SSR3Z | TCC-120603-SSR3Z | 3/4 | 3/16 | 3/8 | Crown | Stainless | | Metal Shield | Stainless |
135272 | TCC-140604-SSR4R | TCC-140604-SSR4R | 7/8 | 1/4 | 3/8 | Crown | Stainless | | Rubber Sealed | Stainless |
135273 | TCC-140604-SSR4Z | TCC-140604-SSR4Z | 7/8 | 1/4 | 3/8 | Crown | Stainless | | Metal Shield | Stainless |
135274 | TCC-160604-SSR4R | TCC-160604-SSR4R | 1 | 1/4 | 3/8 | Crown | Stainless | | Rubber Sealed | Stainless |
135275 | TCC-160604-SSR4Z | TCC-160604-SSR4Z | 1 | 1/4 | 3/8 | Crown | Stainless | | Metal Shield | Stainless |
135276 | TCC-160804-SS1602R | TCC-160804-SS1602R | 1 | 1/4 | 1/2 | Crown | Stainless | | Rubber Sealed | Stainless |
135277 | TCC-180804-SS1602R | TCC-180804-SS1602R | 1-1/8 | 1/4 | 1/2 | Crown | Stainless | | Rubber Sealed | Stainless |
135278 | TCC-200804-SS1602R | TCC-200804-SS1602R | 1-1/4 | 1/4 | 1/2 | Crown | Stainless | | Rubber Sealed | Stainless |
135279 | TCC-200905-SS1603R | TCC-200905-SS1603R | 1-1/4 | 5/16 | 9/16 | Crown | Stainless | | Rubber Sealed | Stainless |
135280 | TCC-200906-SS1604R | TCC-200906-SS1604R | 1-1/4 | 3/8 | 9/16 | Crown | Stainless | | Rubber Sealed | Stainless |

Technical specifications

• Crown style surface with integrated bearing mount
• Single-row bearing retained by snap ring
• Available bearing types: steel, stainless; shielded and sealed options
• Covers available in multiple materials: 303 stainless steel; grey 70D urethane; blue nylon (thermal and chemical resistant); polyacetal (general use); PEEK (high strength, high temp and chemical resistance); 1045 steel with electroless plating
• Multiple part options with various diameters (D), inner diameters (D1) and wheel widths (W)
• Wheel Type: Crown
• Bearing Material: Stainless (for the listed SKUs)
