Removable immersion heater
energy saving

Removable immersion heater - Glass Service - energy saving
Removable immersion heater - Glass Service - energy saving
Removable immersion heater - Glass Service - energy saving - image - 2
Removable immersion heater - Glass Service - energy saving - image - 3
Add to favorites
Compare this product

Characteristics

Type
removable
Other characteristics
energy saving
Power

Max.: 16,000 W
(21.75 hp, 67.98 hp)

Min.: 7,000 W
(9.52 hp, 27.19 hp)

Description

Technology description
  • Immersed dry molybdenum electrodes mounted on side-walls of each section provide direct electrical heating of distributor and forehearth glass.
  • Electrodes transfer heat by direct current passage through the molten glass, improving local thermal control.
  • Electrode cooling is air-based via a centrifugal fan (waterless), simplifying installation and eliminating water piping and management.


Startup & maintenance
  • Dedicated preheating procedure enables safe hot insertion of electrodes during startup.
  • Electrode holders engineered for efficient cooling with low-pressure centrifugal fan air; holders allow straightforward replacement and inspection.
  • Ground electrode placed near the spout and monitored with current control and alarm for electrical safety.


Power, voltage & safety
  • Power per electrode is limited to ensure thermal homogeneity and extend molybdenum life.
  • Typical installed power per section: 20–50 kW; delivered power per heating zone typically 7–16 kW.
  • Electrode voltage is kept very low for operator safety (typically ~50–100 VAC max).
  • Low per-electrode power and voltage reduce risk during maintenance and production operations.


Electrical control & protection
  • Power electronics based on thyristor control with low-power dry-type transformers for precise regulation at low electrical powers.
  • Dedicated fuse per electrode (fuse-board) provides short-circuit protection and electrical isolation for single-channel maintenance.
  • Design addresses short-circuit protection and elimination of residual voltage in the glass gob.
  • Optional Vdc current/voltage compensator available for advanced control.


Performance & environmental benefits
  • Immersed electrode heating can reduce combustion energy demand by up to ~60% versus traditional air/gas heating.
  • Corresponding CO2 emissions can be reduced by up to ~60% compared to air/gas systems.


Applications & materials
  • Suitable for all common glass types: flint, amber and green glass.
  • For extra flint or lead crystal, tin oxide electrodes can replace molybdenum to avoid slight grey shading from chemical interaction.


Additional notes
  • Design strategy favors a larger number of low‑power electrodes to ensure thermal uniformity across sections.
  • Ground electrode monitoring and alarm systems reduce risk from insulation faults.


Technical specifications
  • Heating method: immersed dry molybdenum electrodes (side-wall installation)
  • Electrode cooling: air-cooled (centrifugal fan), no water cooling
  • Typical installed power per section: 20–50 kW
  • Typical delivered power per zone: 7–16 kW
  • Typical electrode voltage: 50–100 VAC (maximum)

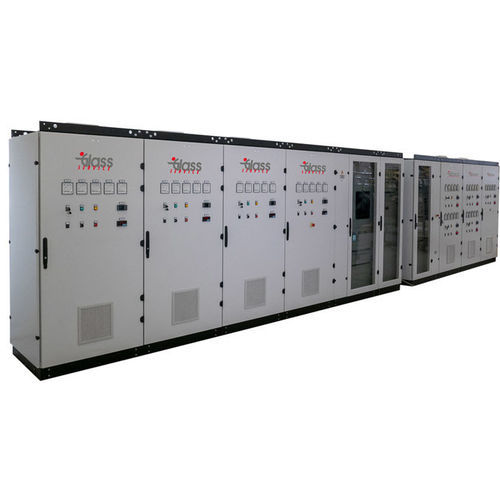

  • Control: thyristor-based power panels with low-power dry-type transformers
  • Protection: dedicated fuse per electrode and short-circuit protection; ground electrode current monitoring and alarm
  • Optional: Vdc current/voltage compensator; tin oxide electrodes for special glass types
  • Energy/Emissions benefit: up to ~60% reduction in combustion energy and CO2 vs air/gas heating
