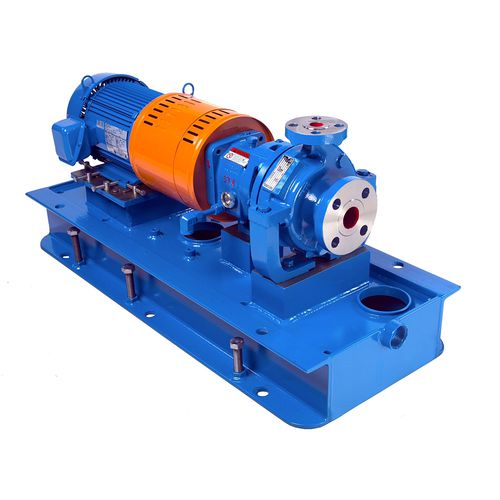

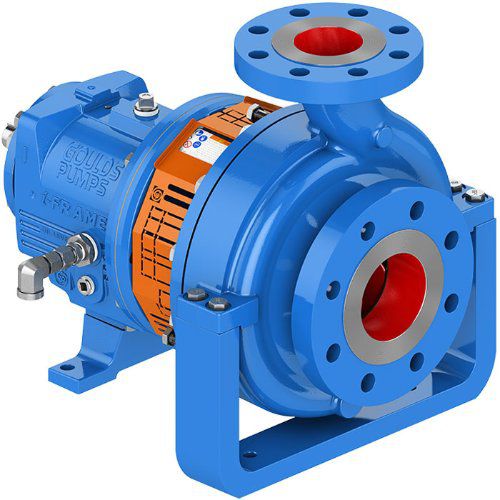

Centrifugal pump HT 3196 i-FRAME for hot waterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for hot water, for chemicals
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical, for the pharmaceutical industry, for the food and beverage industry, for the petrochemical industry
- Applications
- chemical process, high-temperature
- Material
- stainless steel
- Flow
1,023 m³/h
(36,126.90406 ft³/h)- Pressure
3,102,000 Pa
(449.907 psi)- Head
282 m
(925'02" )- Fluid temperature
372 °C
(701.6 °F)- Weight
Min.: 38 kg
(83.78 lb)Max.: 376 kg
(828.94 lb)
Description
Goulds HT 3196 i-FRAME is specifically designed for superior performance for high temperature applications in the chemical industry.
Design Features
Extended Pump Life
Standard centerline mounted casing
ANSI Class 300 RF flanges
i-FRAME power end
Stainless steel shaft
Finned tube oil cooler
Patented TaperBoreTM PLUS Seal Chamber
i-FRAME power ends
BigBoreTM Seal Chambers
Ease of Maintenance
ANSI B73.1M and PIP RESP 73H-97 dimensional compliance
Back Pull-out Design
External Impeller Adjustment
Maximum Interchangeability with 3196
Optimum Hydraulic Performance
Fully Open Impeller
Renewable pump performance
Full 50/60 Hz Coverage
Markets
Chemical / Petrochemical
Pharmaceutical
Pulp & Paper
Food & Beverage
Rubber & Plastic Manufacturing
Power / Utility
