Centrifugal pump 3996 acidelectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- acid
- Operation
- electric
- Priming
- semi-submersible
- Mobility
- stationary
- Domain
- industrial
- Applications
- process, chemical process
- Other characteristics
- close-coupled, in-line, vertical
- Flow
318 m³/h
(11,230.06402 ft³/h)- Pressure
2,586,000 Pa
(375.068 psi)- Head
213 m
(698'09" )- Fluid temperature
260 °C
(500 °F)- Width
Max.: 762 mm
(30 in)Min.: 381 mm
(15 in)- Weight
Max.: 277 kg
(610.68 lb)Min.: 86 kg
(189.6 lb)
Description

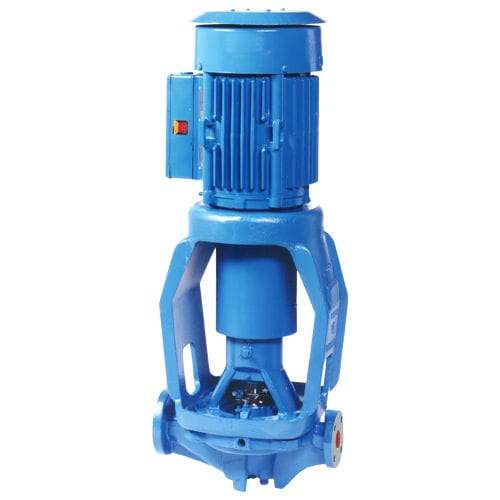

Goulds 3996 process pump line is specifically designed to provide superior performance for in-line services of the Chemical Process Industries.
Specifications
Extended Pump Life
Integral pump bearings
TaperBoreTM PLUS and BigBoreTM seal chambers
Precision fits for accurate alignment
Flexibly coupled
Ease of Maintenance
In-line mounting
Field alignment not required
Back pull-out design
External impeller adjustment
Safety
ANSI B15.1 coupling guard
Ductile iron frame and motor support
Fully serrated flanges
Catalogs
CV 3196 i-FRAME
11 Pages
HT 3196 i-FRAME
14 Pages
