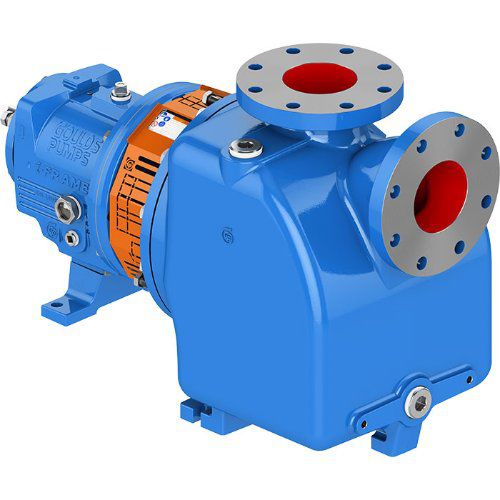

Chemical pump 3796 i-FRAME electricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- process, chemical process
- Flow
284 m³/h
(10,029.36535 ft³/h)- Pressure
2,586,000 Pa
(375.068 psi)- Head
131 m
(429'09" )- Fluid temperature
260 °C
(500 °F)
Description
Goulds Model 3796 i-FRAME process pump line is specifically designed to provide superior performance for self-priming services of the Chemical Process Industries.
Design Features
Extended Pump Life
One-piece casing with integral priming and air separation (no external priming chamber or air separator required)
No suction check valve required
Rapid priming time
Positive retention of pumpage under siphon conditions
Self-purge of vapors
i-FRAME Power Ends
Ease of Maintenance
Back pull-out design (one craft maintenance)
Parts interchangeable with Goulds Model 3196
External impeller adjustment
Easy retrofit
Safety
ANSI B15.1 coupling guard
Ductile iron frame adapter
Fully serrated flanges
Catalogs
Goulds 3196 i-FRAME Process Pump
19 Pages
