acid pump / electric / centrifugal / industrial

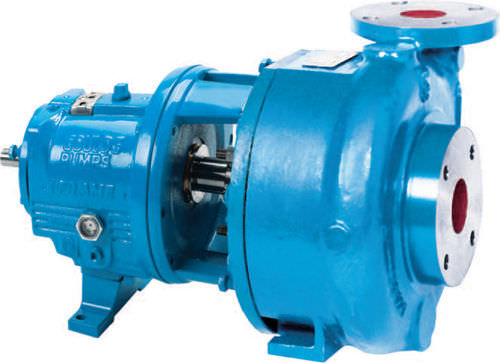

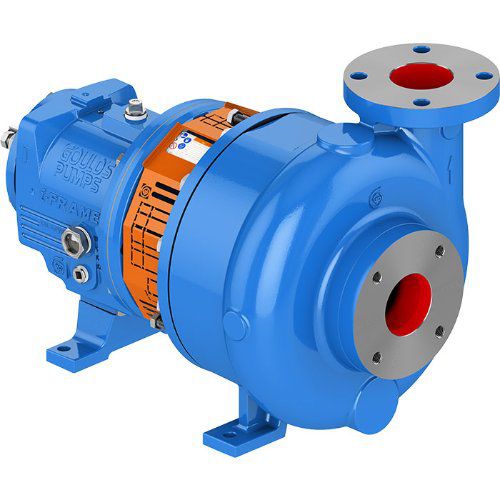

CV 3196 i-FRAME series
handling, chemical process
610 m³/h (21,541.9467 ft³/h)
1,965,000 Pa (284.999 psi)
134 m (439'07")
The CV 3196 i-FRAME pump is developed to deliver top performance in containing solids. The Goulds concentric volute casing and the open recessed impeller provide the non-clogging ability and the solids experience minimal degradation. Additionally this pump can also handle liquids polluted with gas or air.
These pumps have the capacity of 610 cubic meters per hour (2700 GPM). The heads can go up to 134 m (440 ft.). They can withstand a pressure of 285 psig (1965 kPa) and a temperature of 260 degrees Celsius (500 Fahrenheit).
The concentric volute casing allows minimum wear during exploitation and it possesses a recessed impeller which allows minimal degradation of solids. This pump comes with a BigBore/TaperBore seal chambers and i-FRAME power ends.
The maintenance of the pump is easy thanks to the back pull out setup. It also allows external impeller adjustments. The bulk of the parts can be swapped with 3196 i-FRAME model. This pump allows easy retrofit.
Concerning safety, it has the ANSI B15.1 coupling guard and ductile iron frame adapter.
