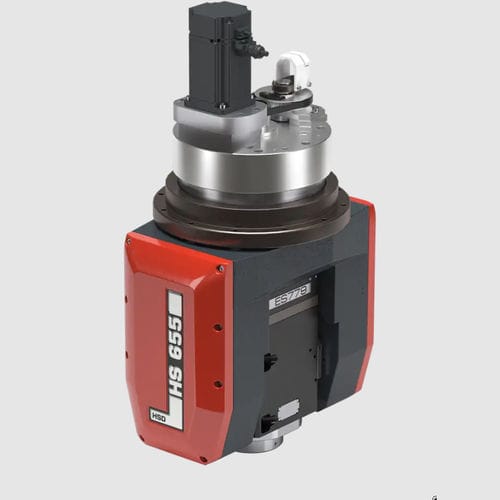

2-axis machining head HS655

2-axis machining head
2-axis machining head
Add to favorites
Compare this product


Characteristics

Number of axes
2-axis

Description

Fagor, Yaskawa,Fanuc,Siemens,Osai,Schneider, Heidenhain Motors A Axis max torque: 400Nm; 1.000**Nm C Axis stall/ Max torque C: 500Nm; 1.200**Nm Clamping torque Axes brakes A; C: 480Nm; 600Nm Max speed Axes A; C: 170°/sec; 270**°/sec Measuring system accuracy A;C: 60 arcsec; 60 arcsec; (30;30)arcsec*** A;C Axes rotation: ±120°;±245° A;C Axes endless rotation (Slip Ring): no; option Axis encoder: option(AMO) Axes Brakes: option pneumatic Weight: ~120kg **Values depend on the servomotor chosen ***With axis encoder SPINDLES AVAILABLE ES798 HSK F63-A63 Torque S1-S6: 19,1Nm/20,9Nm Asynch; Power S1-S6: 15kW/18kW Asynch; Max Speed: 24.000 rpm grease; Rated Speed: 9.000 rpm Spindle Encoder: TTL/sincos(Option)
