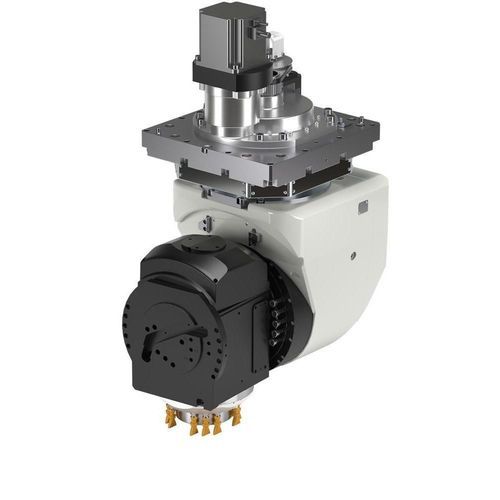

Machining unit angle head HS778

millingfor industrycompact

Overview
HS778 is a 1- and 2-axis machining head designed, manufactured and marketed worldwide by HSD for machining a broad range of materials and metals.

Applications

• Industrial machining operations on a wide range of materials and metals
• Integration into machine tools requiring 1-axis or 2-axis head solutions

Key features

• Compatible motor brands: Siemens, Fanuc, Yaskawa
• High axis torques for heavy machining tasks (A and C: 2,400 Nm)
• Axis brakes with significant clamping torque for stable operations (A: 2,000 Nm; C: 3,000 Nm)
• High maximum axis speeds for improved productivity (A: 85 °/sec; C: 115 °/sec)
• High-precision measuring systems (arcsec level: A 60 (20); C 60 (30))
• Compact working ranges for A and C axes (A: ±100°; C: ±262°)
• Approximate installed weight: ≈ 350 kg

Technical sheet
Motor brand: Siemens, Fanuc, Yaskawa
A Axis Max torque [Nm]: 2.400
C Axis Max torque [Nm]: 2.400
Clamping torque Axis brakes A [Nm]: 2.000
Clamping torque Axis brakes C [Nm]: 3.000
Max. speed Axis A [° / sec]: 85
Max. speed Axis C [° / sec]: 115
Measuring System Accuracy A [arcsec]: 60 (20)
Measuring System Accuracy C [arcsec]: 60 (30)
A Axis range [°]: ±100
C Axis range [°]: ±262
Weight [kg]: ≈ 350

Characteristics / technical specifications

• Motor brand: Siemens, Fanuc, Yaskawa
• A Axis Max torque: 2.400 Nm
• C Axis Max torque: 2.400 Nm
• Clamping torque Axis brakes A: 2.000 Nm
• Clamping torque Axis brakes C: 3.000 Nm
• Max. speed Axis A: 85 °/sec
• Max. speed Axis C: 115 °/sec
• Measuring System Accuracy A: 60 (20) arcsec
• Measuring System Accuracy C: 60 (30) arcsec
• A Axis range: ±100°
• C Axis range: ±262°
• Weight: approximately 350 kg
