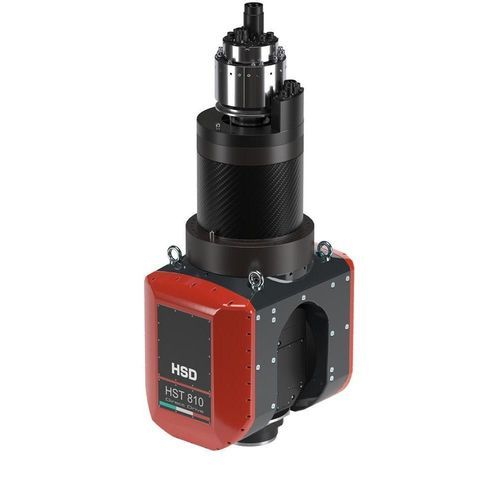

Machining unit angle head HST810 DS

millingfor millingmotorized

Product overview
The HST810 DS is a 1- and 2-axis machining head designed for integration on CNC machining centers to perform milling and finishing operations on a wide range of materials and metals. It combines direct-drive motor technology with precise measurement systems to deliver repeatable angular positioning and high dynamic response.

Technical sheet
Motor brand: HSD Direct Drive
A Axis Max torque [Nm]: 1.414
C Axis Max torque [Nm]: 1.250
Clamping torque Axis brakes A [Nm]: 4.000
Clamping torque Axis brakes C [Nm]: 4.000
Max. speed Axis A [° / sec]: 180
Max. speed Axis C [° / sec]: 180
Measuring System Accuracy A [arcsec]: 2
Measuring System Accuracy C [arcsec]: 2
A Axis range [°]: ±110
C Axis range [°]: ±360
Weight [kg]: ≈ 650

Features / technical specifications

• Motor brand: HSD Direct Drive
• A Axis Max torque: 1.414 Nm
• C Axis Max torque: 1.250 Nm
• Clamping torque Axis brakes A: 4.000 Nm
• Clamping torque Axis brakes C: 4.000 Nm
• Max. speed Axis A: 180 °/sec
• Max. speed Axis C: 180 °/sec
• Measuring System Accuracy A: 2 arcsec
• Measuring System Accuracy C: 2 arcsec
• A Axis range: ±110°
• C Axis range: ±360°
• Weight: ≈ 650 kg
