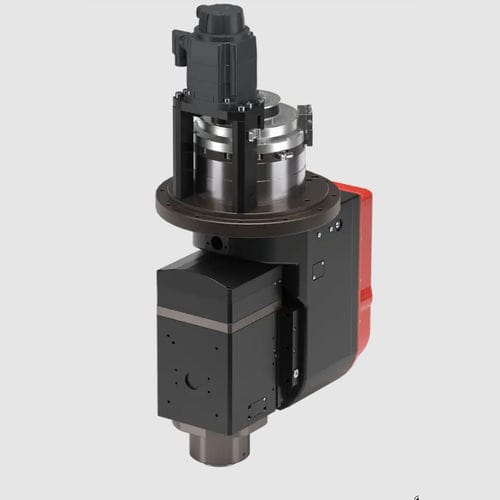

2-axis machining head HS673

2-axis machining head
2-axis machining head
Add to favorites
Compare this product


Characteristics

Number of axes
2-axis

Description

HS673 ELECTROHEAD DATA Mitsubishi, Siemens Motors A Axis max torque: 347Nm; 1.030**Nm C Axis stall/ Max torque C: 490Nm; 1.030**Nm Clamping torque Axes brakes A; C: 342;342 Max speed Axes A; C: 135°/sec; 135°/sec Measuring system accuracy A;C: 30 arcsec; 30 arcsec A;C Axes rotation: ±120°;±360° A;C Axes endless rotation (Slip Ring): no; no Axis encoder: yes(AMO) Axes Brakes: yes pneumatic Weight: ~100kg **Values depend on the servomotor chosen SPINDLES AVAILABLE ES779 HSK F63-A63 Torque S1-S6: 12,7Nm/15,3Nm Asynch Power S1-S6: 10kW/12kW Asynch Max Speed: 24.000 rpm grease; Rated Speed: 7.500 rpm (S1 15kW) Spindle Encoder: TTL/sincos(Option) ES779 HSK F63-A63 Torque S1-S6: 11,9Nm/14,3Nm Asynch Power S1-S6: 15kW/18kW Asynch Max Speed: 24.000 rpm grease; Rated Speed: 12.000 rpm (S1 15kW) Spindle Encoder: TTL/sincos(Option) ES779 HSK F63-A63 Torque S1-S6: 18Nm/20Nm Synch Power S1-S6: 22kW/25kW Synch Max Speed: 24.000 rpm grease; Rated Speed: 10.600 rpm Spindle Encoder: TTL/sincos(Option)
