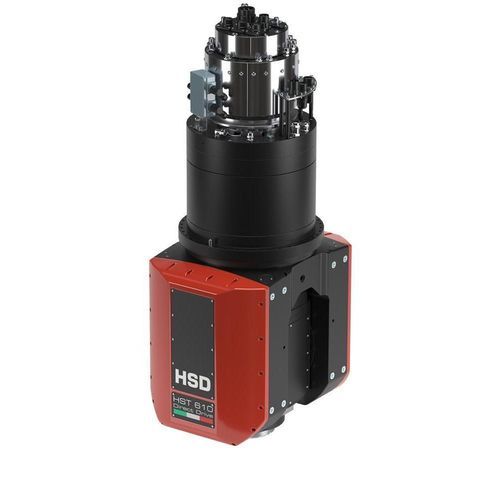

Milling angle head HST610 DS

for industryfor millingintegral

Overview
Discover the HST610 DS 1- and 2-axis head designed, manufactured and marketed worldwide by HSD for machining metals, composites and wood. The HST610 DS is a multi-axis head intended for industrial machining operations requiring precise angular positioning and high torque.

Main features

• Available as 1-axis or 2-axis head (A and C axes)
• Suitable for metal machining and composite/wood applications
• Integrated HSD Direct Drive motor technology

Product tags

• Metal

Technical sheet (table)
Motor brand: HSD Direct Drive
A Axis Max torque [Nm]: 480
C Axis Max torque [Nm]: 680
Clamping torque Axis brakes A [Nm]: 2.000
Clamping torque Axis brakes C [Nm]: 2.000
Max. speed Axis A [° / sec]: 300
Max. speed Axis C [° / sec]: 300
Measuring System Accuracy A [arcsec]: 5 (2 on request)
Measuring System Accuracy C [arcsec]: 4 (2 on request)
A Axis range [°]: ±110
C Axis range [°]: ±360
Weight [kg]: ̴ 310

Applications / Typical use cases

• High-precision 1- and 2-axis machining heads for metal, composite and wood
• Industrial machining operations requiring high torque and accurate angular positioning
• Integration in multi-axis machining centers and dedicated production lines

Specifications / technical characteristics

• Motor brand: HSD Direct Drive
• A Axis Max torque: 480 Nm
• C Axis Max torque: 680 Nm
• Clamping torque Axis brakes A: 2.000 Nm
• Clamping torque Axis brakes C: 2.000 Nm
• Max. speed Axis A: 300 °/sec
• Max. speed Axis C: 300 °/sec
• Measuring System Accuracy A: 5 arcsec (2 arcsec on request)
• Measuring System Accuracy C: 4 arcsec (2 arcsec on request)
• A Axis range: ±110°
• C Axis range: ±360°
• Weight: approx. 310 kg
