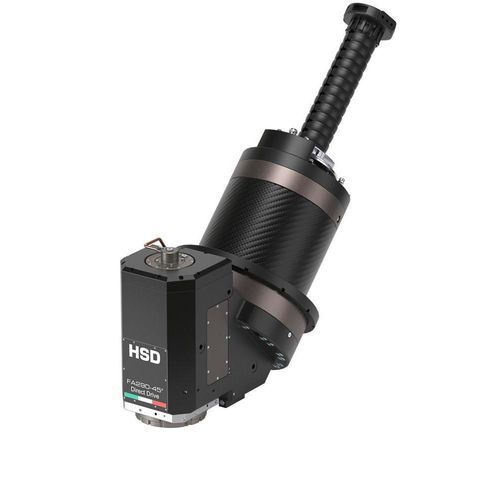

1-axis milling head FA290

2-axisindexingCNC

Overview
The FA290 1- and 2-axis milling heads designed and manufactured by HSD are engineered for machining metals and a wide range of industrial materials. They provide C-axis functionality for operations requiring angular indexing and rotation and are intended for integration with CNC machine tools.

Applications / Materials

• Metal machining
• Multi-axis CNC milling requiring C-axis rotation and positioning

Associated products

• ES511

Technical data
Motor brand: HSD Direct Drive
Maximum torque axis A [Nm]: /
Maximum torque axis C [Nm]: 750
Locking torque axis A [Nm]: /
Locking torque axis C [Nm]: 4.000
Max speed axis A [°/s]: /
Max speed axis C [°/s]: 240
Measurement accuracy axis A [arcsec]: /
Measurement accuracy axis C [arcsec]: 5
Rotation range axis A [°]: /
Rotation range axis C [°]: ±120
Weight [kg]: ≈ 260

Features / technical specifications

• Motor brand: HSD Direct Drive
• C-axis maximum torque: 750 Nm
• C-axis locking torque: 4.000 Nm
• C-axis maximum speed: 240 °/s
• C-axis measurement accuracy: 5 arcsec
• C-axis rotation range: ±120°
• Approximate weight: ≈ 260 kg

Notes
Fields not provided in the source are shown as /.
