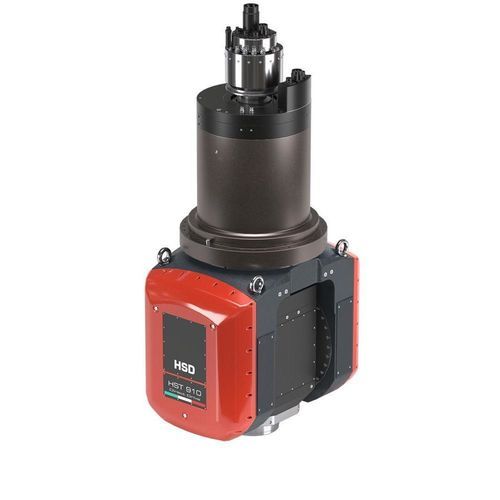

Industry angle head HST910 DS

for millingmotorizedorientable

Product overview
Discover the innovative HST910 DS 1- and 2-axis head that HSD designs, manufactures and markets worldwide for machining all types of materials and metals. Part of the HST Line, the HST910 DS is engineered for industrial machining operations and integrates HSD Direct Drive motor technology.

Technical sheet
Motor brand: HSD Direct Drive
A Axis Max torque [Nm]: 2.400
C Axis Max torque [Nm]: 3.000
Clamping torque Axis brakes A [Nm]: 6.000
Clamping torque Axis brakes C [Nm]: 8.000
Max. speed Axis A [° / sec]: 180
Max. speed Axis C [° / sec]: 180
Measuring System Accuracy A [arcsec]: 2
Measuring System Accuracy C [arcsec]: 2
A Axis range [°]: ±110
C Axis range [°]: ±360
Weight [kg]: ≈ 1.475

Characteristics / technical specifications

• Motor brand: HSD Direct Drive
• A Axis Max torque: 2.400 Nm
• C Axis Max torque: 3.000 Nm
• Clamping torque Axis brakes A: 6.000 Nm
• Clamping torque Axis brakes C: 8.000 Nm
• Max. speed Axis A: 180 °/sec
• Max. speed Axis C: 180 °/sec
• Measuring System Accuracy A: 2 arcsec
• Measuring System Accuracy C: 2 arcsec
• A Axis range: ±110°
• C Axis range: ±360°
• Weight: ≈ 1.475 kg
