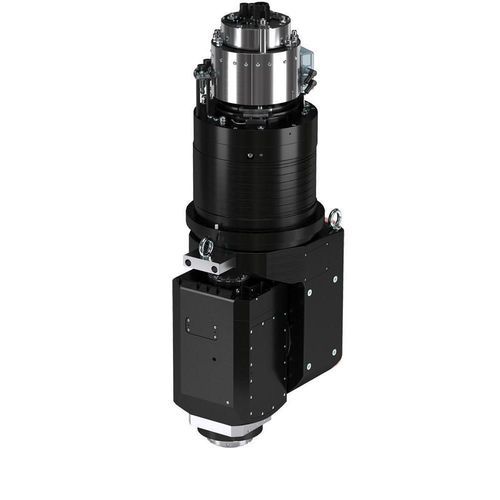

Industry angle head HST610 MS

for millingadjustablemotorized

Product overview
Discover the HST610 MS 1- and 2-axis machining head, designed, manufactured and marketed by HSD for industrial machining operations. Suitable for processing a wide range of materials and metals; available with high-accuracy measuring system on request.

Applications

• Industrial CNC machining centres
• High-precision metalworking and multi-material machining

Technical sheet
Motor brand: HSD Direct Drive
A Axis Max torque [Nm]: 480
C Axis Max torque [Nm]: 680
Clamping torque Axis brakes A [Nm]: 2.000
Clamping torque Axis brakes C [Nm]: 2.000
Max. speed Axis A [° / sec]: 300
Max. speed Axis C [° / sec]: 300
Measuring System Accuracy A [arcsec]: 4 (2 on request)
Measuring System Accuracy C [arcsec]: 4 (2 on request)
A Axis range [°]: ±110
C Axis range [°]: ±360
Weight [kg]: approx. 290

Characteristics / technical specifications

• Direct drive motor by HSD for enhanced dynamic response
• A axis max torque: 480 Nm
• C axis max torque: 680 Nm
• Axis brake clamping torque (A/C): 2.000 Nm
• Max. rotational speed (A/C): 300 °/sec
• Measuring system accuracy: 4 arcsec standard (2 arcsec on request)
• Working ranges: A ±110°, C ±360°
• Approximate weight: 290 kg
