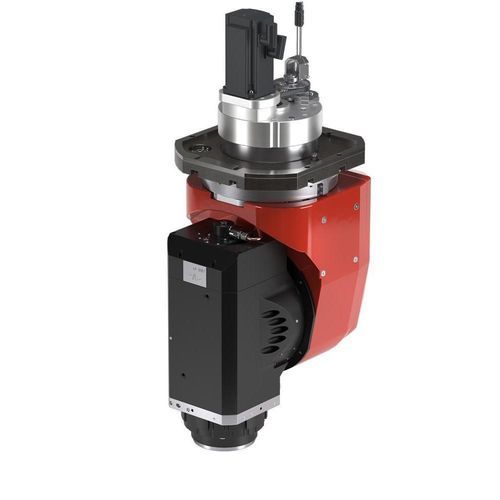

Machining unit angle head HS678

millingmotorized

Overview
Discover the HS678 1- and 2-axis machining head developed and manufactured by HSD for precision machining of metals and composites. The HS678 is offered with multiple motor configurations to fit integration on milling and machining centres worldwide.

Applications / Materials

• Metal
• Composite

Technical sheet (table)
Motor brand | Siemens, Fanuc, Yaskawa | Siemens, Fanuc, Yaskawa
A Axis Max torque [Nm] | 1225 | 1200
C Axis Max torque [Nm] | 1225 | 1200
Clamping torque Axis brakes A [Nm] | 1080 | 1080
Clamping torque Axis brakes C [Nm] | 1080 | 1080
Max. speed Axis A [° / sec] | 120 | 120
Max. speed Axis C [° / sec] | 200 | 200
Measuring System Accuracy A [arcsec] | 60(30) | 60(30)
Measuring System Accuracy C [arcsec] | 60(30) | 60(30)
A Axis range [°] | ±120 | ±120
C Axis range [°] | ±245 | ±245
Weight [kg] | ≈2 280 | ≈2 280

Characteristics / Technical specifications

• Model: HS678
• Motor brands supported: Siemens, Fanuc, Yaskawa
• A axis max torque: 1225 Nm (option/configuration: 1200 Nm)
• C axis max torque: 1225 Nm (option/configuration: 1200 Nm)
• Axis brakes clamping torque (A, C): 1080 Nm
• Max speed A: 120 °/sec
• Max speed C: 200 °/sec
• Measuring system accuracy (A, C): 60 (30) arcsec
• A axis range: ±120°
• C axis range: ±245°
• Approximate weight: ≈2 280 kg
