Machining unit angle head HS675
for millingmotorized

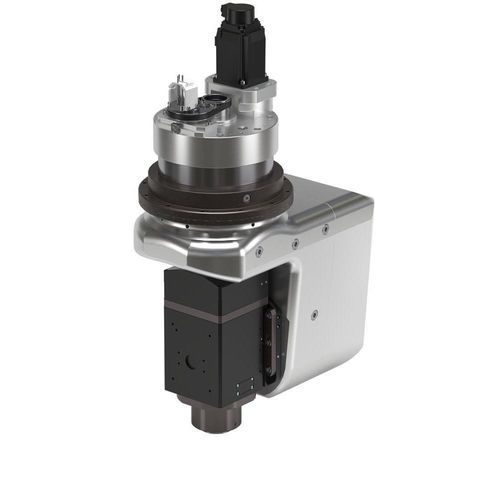

Machining unit angle head - HS675 - HSD - for milling / motorized
Machining unit angle head - HS675 - HSD - for milling / motorized
Add to favorites
Compare this product
Go to the HSD website for more information

Characteristics

Applications
for machining units, for milling
Other characteristics
motorized
Torque

600 Nm, 1,000 Nm, 1,200 Nm
(442.54 ft.lb, 737.56 ft.lb, 885.07 ft.lb)

Description

Overview
Discover the HS675 1- and 2-axis machining head that HSD designs, manufactures and markets worldwide for machining a wide range of materials including wood, composites and metals.

Applications / Materials
  • Machining of wood
  • Composite materials
  • General-purpose machining for various metals and materials

Notes
  • Available as 1-axis or 2-axis configurations
  • Compatible with motors from Siemens, Fanuc and Yaskawa

Specifications / Technical data
  • Motor brand: Siemens, Fanuc, Yaskawa
  • A Axis Max torque [Nm]: 1000
  • C Axis Max torque [Nm]: 1200
  • Clamping torque Axis brakes A [Nm]: 600
  • Clamping torque Axis brakes C [Nm]: 600
  • Max. speed Axis A [° / sec]: 130
  • Max. speed Axis C [° / sec]: 200
  • Measuring System Accuracy A [arcsec]: 60 (30)
  • Measuring System Accuracy C [arcsec]: 60 (30)
  • A Axis range [°]: ±120
  • C Axis range [°]: ±245
  • Weight [kg]: 170
