Machining unit angle head HST810 MS

millingfor industrymotorized

Overview

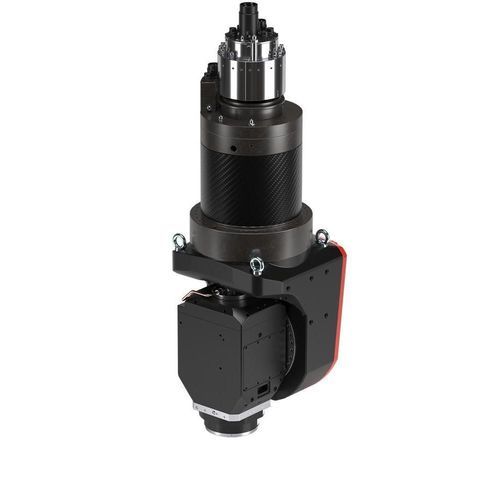

The HST810 MS is an HSD 1- and 2-axis machining head engineered for industrial machining of a wide range of materials and metals. It integrates HSD direct-drive motors to provide high torque and precise positioning required for demanding machining tasks.

Product highlights

• Configuration: available as 1-axis or 2-axis head
• HSD direct-drive solution for reduced backlash and improved dynamic response
• Suitable for machining diverse materials and metals
• Designed for industrial applications requiring high torque and positional accuracy

Technical sheet
Motor brand: HSD Direct Drive
A Axis Max torque [Nm]: 707
C Axis Max torque [Nm]: 1250
Clamping torque Axis brakes A [Nm]: 2000
Clamping torque Axis brakes C [Nm]: 4000
Max. speed Axis A [° / sec]: 180
Max. speed Axis C [° / sec]: 180
Measuring System Accuracy A [arcsec]: 2
Measuring System Accuracy C [arcsec]: 2
A Axis range [°]: ±110
C Axis range [°]: ±360
Weight [kg]: ≈ 550

Technical specifications

• Motor brand: HSD Direct Drive
• A-axis maximum torque: 707 Nm
• C-axis maximum torque: 1250 Nm
• Clamping torque (Axis A brakes): 2000 Nm
• Clamping torque (Axis C brakes): 4000 Nm
• Maximum speed Axis A: 180 °/s
• Maximum speed Axis C: 180 °/s
• Measuring system accuracy Axis A: 2 arcsec
• Measuring system accuracy Axis C: 2 arcsec
• A-axis rotation range: ±110°
• C-axis rotation range: ±360°
• Approximate weight: 550 kg
