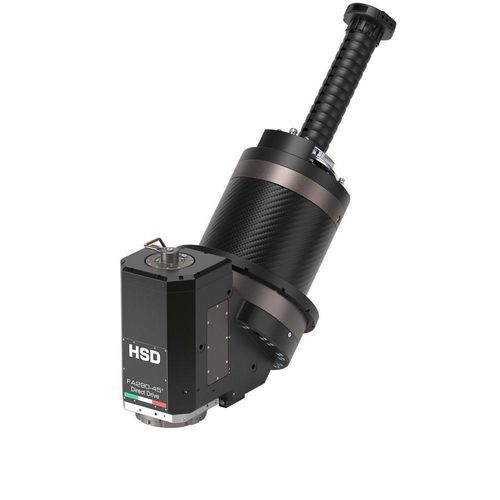

45° angle head FA290 45°

for machining unitsmillingfor milling

Product overview
The FA290 45° 1- and 2-axis head is designed for industrial machining operations. HSD develops and markets this head for machining metals and a wide range of materials. The FA290 45° is a spindle/head solution with a 45° configuration suitable for multi-axis machining cells and systems.

Key points

• Type: 1- and 2-axis head (45° configuration)
• Application: machining of metals and general materials
• Motor brand: HSD Direct Drive

Technical sheet (as displayed)
Motor brand : HSD Direct Drive
A Axis Max torque [Nm] : /
C Axis Max torque [Nm] : 1679
Clamping torque Axis brakes A [Nm] : /
Clamping torque Axis brakes C [Nm] : 4.000
Max. speed Axis A [° / sec] : /
Max. speed Axis C [° / sec] : 480
Measuring System Accuracy A [arcsec] : /
Measuring System Accuracy C [arcsec] : 2
A Axis range [°] : /
C Axis range [°] : '-30/+180'
Weight [kg] : ≈ 300

Related products (listed on the page)

• ES510
• ES511
• ES514

Characteristics / technical specifications

• Model: FA290 45° (45-degree head)
• Configuration: available in 1- and 2-axis variants
• Motor: HSD Direct Drive
• C axis maximum torque: 1679 Nm
• Clamping torque (C axis brakes): 4.000 Nm
• C axis maximum speed: 480 °/sec
• Measuring system accuracy (C axis): 2 arcsec
• C axis motion range: -30° to +180°
• Approx. weight: 300 kg
• Primary application: metal machining and general materials machining
