Continuous wave laser system YLS-SMx
CWfibernear-infrared

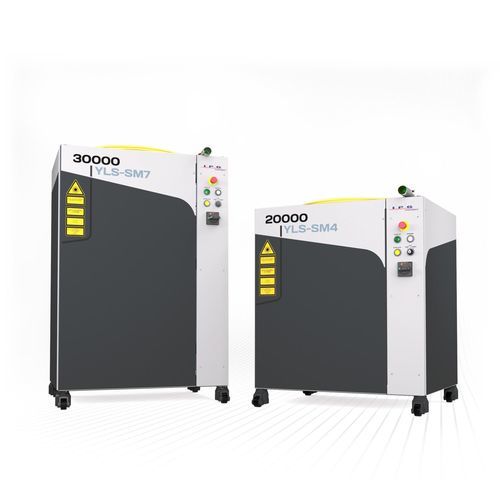

Continuous wave laser system - YLS-SMx - IPG Photonics Corporation - CW / fiber / near-infrared
Continuous wave laser system - YLS-SMx - IPG Photonics Corporation - CW / fiber / near-infrared
Continuous wave laser system - YLS-SMx - IPG Photonics Corporation - CW / fiber / near-infrared - image - 2
Continuous wave laser system - YLS-SMx - IPG Photonics Corporation - CW / fiber / near-infrared - image - 3
Continuous wave laser system - YLS-SMx - IPG Photonics Corporation - CW / fiber / near-infrared - image - 4
Add to favorites
Compare this product

Characteristics

Operational mode
continuous wave, CW
Technology
fiber
Spectrum
near-infrared
Applications
for production lines, high-power
Other characteristics
high-brightness, modulated, beam property, single-mode
Power

15,000 W, 20,000 W, 30,000 W

Wavelength

1,075 nm

Description

Overview
IPG single-mode and low-order-mode CW fiber YLS-SMx laser sources deliver continuous output up to 30 kW in a low-order, low-divergence beam. These compact, industrial CW fiber lasers provide high brightness and are designed for advanced long-range and scientific applications including power beaming, LIDAR/obstacle warning, directed energy and remote material processing.

Key Features
  • Continuous output power up to 30 kW (model dependent)
  • Low-order, low-divergence beam at 1075 nm
  • High brightness suitable for long-range applications
  • Compact industrial design with direct modulation up to 5 kHz


Industries & Applications
  • Power beaming — long-distance transmission of power for vehicles, aircraft and other systems
  • Remote material processing — long-range cutting, breakdown and decommissioning
  • Obstacle warning and LIDAR (light detecting and ranging)
  • Directed energy applications
  • Scientific projects and research


Fiber Amplification
IPG offers high-power CW fiber amplifiers compatible with YLS-SMx systems. These industrial amplifiers support input powers on the order of tens of milliwatts and amplifier outputs up to 4 kW to extend system energy or provide staged amplification.

High-Brightness Lasers Comparison
YLS-SM3 | 1075 nm | up to 15 kW | BPP < 1.0, 0.9 typ. | mrad < 90 | direct modulation up to 5 kHz
YLS-SM4 | 1075 nm | up to 20 kW | BPP < 1.2, 1.0 typ. | mrad < 90 | direct modulation up to 5 kHz
YLS-SM7 | 1075 nm | up to 30 kW | BPP < 1.8, 1.5 typ. | mrad < 95 | direct modulation up to 5 kHz


Technical specifications
  • Series: YLS-SMx
  • Nominal wavelength: 1075 nm
  • Output power (family): up to 30 kW; examples — YLS-SM3 up to 15 kW, YLS-SM4 up to 20 kW, YLS-SM7 up to 30 kW
  • Beam quality (BPP): <1.0 to <1.8 depending on model (typical values: 0.9, 1.0, 1.5)
  • Beam divergence: typically <90–95 mrad depending on model
  • Direct modulation: up to 5 kHz
  • Amplifier support: amplifier input powers up to ~60 mW; amplifier output powers up to ~4 kW
  • Typical applications: power beaming, remote material processing, LIDAR/obstacle warning, directed energy, scientific research
