Continuous wave laser source YL series

fiberfor weldingcutting

Overview
Single-mode fiber lasers from IPG deliver exceptional beam quality by using fiber cores only a few microns in diameter, allowing laser power to be concentrated into very small spot sizes. This enables higher process speeds, improved part quality and reduced heat input for industrial materials processing.

Key features

• Single-mode beam profile for very low M2 values
• Small focal spot sizes (typically ~30–100 µm) for high power density and precision
• Typical wavelengths around 1070 nm (variants at 1075 nm)
• Output power scalable within the family up to 10 kW

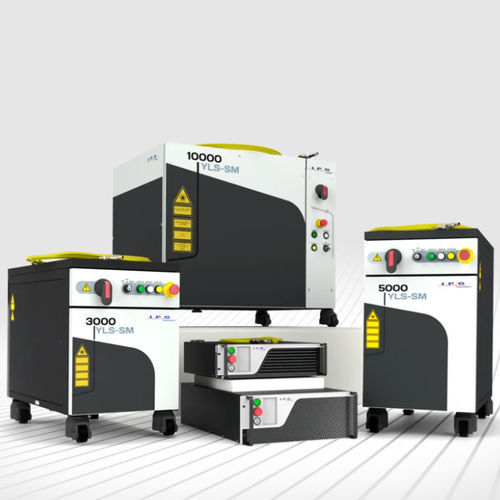

• Available in cabinet (YLS-SM), rack (YLR-SM) and dual-beam / AMB (YLS-SM-AMB) formats
• Modulation options for pulsed/modulated processes (series dependent)

Applications

• Precision welding
• EV battery welding
• Precision cutting and drilling
• Surface preparation & texturing
• 3D printing & additive manufacturing

Single-Mode vs Multi-Mode - notes
Single-mode beams exhibit a Gaussian spatial profile concentrated into small spot sizes (typically 30–100 µm) suited to precision metal cutting, drilling, welding, non-metal processing and additive manufacturing. Multi-mode beams contain multiple spatial modes and generally produce larger focal spots (~100 µm to >1 mm), which can be preferred for high-power cutting and welding of thicker materials.

Single-Mode Fiber Laser Comparison (table)
Columns: YLS-SM Series | YLR-SM Series | YLS-SM-AMB Series
Beam Quality: M2 < 1.1 (up to 2 kW); M2 < 1.15 (up to 4 kW); M2 < 1.2 (up to 5 kW); M2 < 2 (up to 10 kW) | M2 < 1.1 | M2 < 1.3
Wavelength: 1070, 1075 nm | 1070 nm | 1070 nm
Output Power: up to 10 kW | up to 8 kW | Single-Mode Core: up to 3 kW; Ring Beam: up to 5 kW
Modulation Frequency: up to 10 kHz | up to 50 kHz | up to 10 kHz

Notes
Specified values correspond to standard product configurations; custom specifications may be available. Product availability varies by region.

Technical characteristics / specifications

• Beam quality (M2): typical values range from <1.1 to <2 depending on series and power
• Typical wavelength: ~1070 nm (1075 nm variants available)
• Maximum family output power: up to 10 kW
• Typical single-mode focal spot sizes: ~30–100 µm
• Multi-mode focal spot sizes (for comparison): ~100 µm to >1 mm
• Modulation frequency (series dependent): up to 10 kHz (some series up to 50 kHz)
• Available product forms: Cabinets (YLS-SM), Racks (YLR-SM), Dual-beam / AMB (YLS-SM-AMB)
