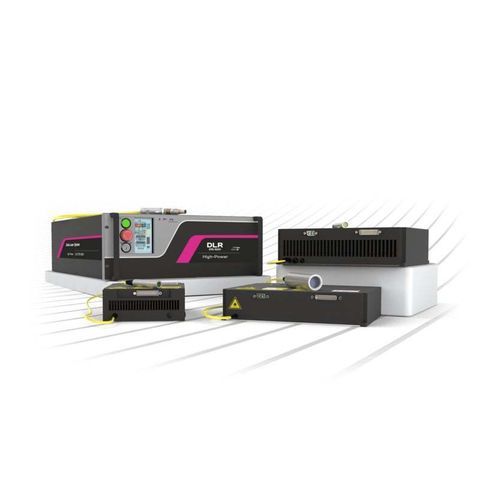

Laser diode module for medical applications DL series

for optical pumpingfor plastics weldingdiode

Overview
IPG diode laser modules and rack units combine reliable single-emitter diodes with delivery fibers to provide integrated diode laser solutions for OEMs and end users. Offered as compact DLM OEM modules and end-user-ready DLR rack units, they provide collimator or bare-fiber output options and optional red guide lasers.

Key product types

• DLM (Diode Laser Modules): turnkey OEM modules with integrated driver electronics and cooling; available with collimator or bare-fiber termination; optional red guide laser.
• DLR (Diode Laser Rack Units): high-brightness, rack-mounted systems using diode-to-fiber combining of sealed single-emitters; end-user-ready for industrial applications.

Functional description
These diode lasers offer multiple output configurations and integrated features to simplify system integration. DLM modules are compact OEM components requiring only an external DC power source. DLR rack units are complete systems with stabilized wavelengths, narrow emission linewidths, sealed emitters and selectable air or water cooling. Units are compact, low-maintenance and energy efficient.

Applications

• Heat treatment and metal hardening
• Plastics welding
• Medical applications
• Optical laser pumping

Comparison (summary)
Wavelength | DLM Series | DLR Series
Wavelength range | 915–970 nm | 970 or 976 nm
Output power | up to 2 kW | up to 2 kW
Modulation | up to 50 kHz | up to 50 kHz
Output fiber core diameter | 150–200 μm | 110–400 μm
Cooling | Air | Air or Water

DLM (Diode Laser Modules)
Compact OEM modules with integrated driver electronics and cooling; available with collimator or bare-fiber termination and optional red guide lasers. Designed for flexible OEM integration; require an external DC power source.

DLR (Diode Laser Rack Units)
High-brightness rack units using diode-to-fiber combining of sealed single-emitters. End-user-ready systems with industrial design, stabilized wavelengths, narrow linewidths and energy efficiency typically >40%.

Technical specifications

• Wavelengths: typical range 915–976 nm (DLM: 915–970 nm; DLR: 970 or 976 nm)
• Maximum output power: up to 2 kW
• Modulation: up to 50 kHz
• Output fiber core diameter: DLM 150–200 μm; DLR 110–400 μm
• Cooling: DLM – air; DLR – air or water
• Output options: collimator or bare-fiber termination; optional red guide lasers
• Driver & cooling: DLM include integrated driver electronics and cooling; DLR are complete rack systems
• Performance: stabilized wavelengths, narrow emission linewidths and high energy efficiency (DLR typ. >40%)
