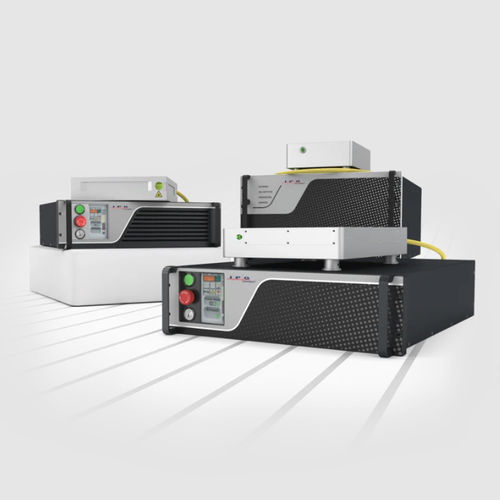

Nanosecond laser ELPN-1645 series

Q-switchedfiberfor materials processing

IPG Photonics' hybrid ELPN Erbium crystal q-switched laser provides 25-200 nanosecond pulses at 1.645 μm with pulse energies up to 35 mJ and output powers up to 25 W. The acousto-optically Q-switched Er:YAG head is pumped by IPG's efficient and reliable erbium CW fiber laser. The ELPN pulsed laser addresses non-metal materials processing, scientific and medical applications. Single-frequency option, higher average powers and pulse energies, flat-top beam and other options are available upon request. Please contact IPG Representative with your requirements. •Pulse Energy 1-35 mJ •Variable Pulse Width Option •Single Frequency Option •1617 nm Operation Option •TEM00 Beam Mode •Energy Amplification Option •Repetition Rate 0.01-100 kHz Applications •LIDAR/Remote Sensing •Track Illuminator •Range Finder •Medical Applications •Material Processing •OPO Pump Source
