Short-pulse laser ULPN-355-M series
nanosecondfiberultraviolet

short-pulse laser
short-pulse laser
Add to favorites
Compare this product


Characteristics

Operational mode
short-pulse, nanosecond
Technology
fiber
Spectrum
ultraviolet
Applications
for marking
Other characteristics
compact, rugged, air-cooled
Wavelength

355 nm

Power

3 W, 6 W, 10 W

Description

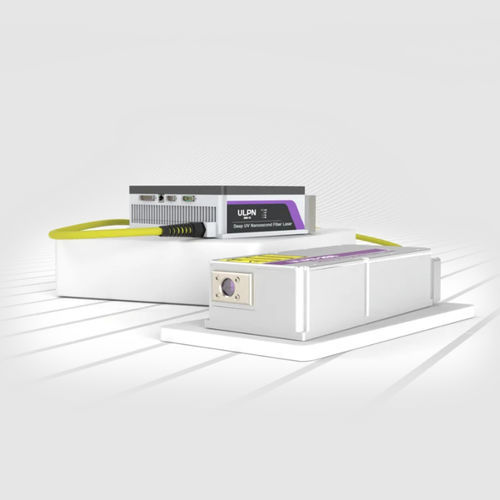

IPG Photonics’ ULPN-M Series ultraviolet nanosecond fiber lasers provide high peak power with scalable average output power up to 10 W, 1.5 ns pulse duration at full operational repetition rate range of 10-1000 kHz. The all fiber format allows for the adjustment of pulse energy and/or pulse repetition rate without affecting any of the output beam parameters. IPG’s novel fiber lasers are much more efficient and compact than conventional lasers now on the market, and are ideal for applications in the solar/photovoltaic arena, resistor trimming and marking of transparent materials. The short wavelength, short pulse duration and high peak power result in very small heat affected zone. Features Wavelength 355 nm Pulse Energy 10 µJ Pulse Duration 1.2 ns Peak Power 10 kW Beam Quality M2 <1.5 Repetition Rate up to 500 kHz Record Wall-plug Efficiency Air-cooled Rugged Design Applications Materials Processing Micromachining Si Ablation Solar/ Photovoltaic Plastics Marking Surface Texturing Scribing
