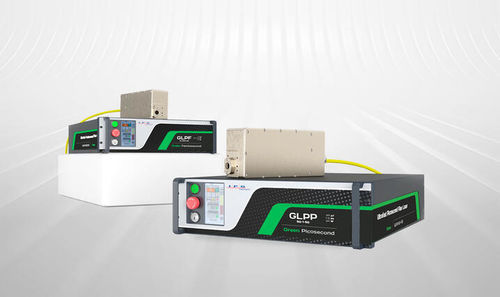

Pulsed laser source GLPP/GLPF-R

femtosecondpicosecondfiber

Overview
Green ultrafast fiber lasers integrate a fully aligned-free second harmonic module to deliver ~515 nm output for applications where green wavelength absorption is advantageous (polymers, copper, ceramics). They provide smaller spot sizes and increased depth of focus and are engineered for robust 24/7 industrial operation, enabling “cold processing” to minimize thermal effects on sensitive materials.

Key features

• Integrated, alignment‑free second harmonic module generating 515 nm
• Pulse duration (reported): 250 fs–5 ps (also referenced as 600 fs–5 ps in some specifications)
• Average power: up to 50 W (product-family dependent)
• Pulse energy: up to 100 µJ
• Pulse repetition rate: 50–5500 kHz
• Beam quality (typ.): <1.3 M2
• Smaller spot sizes and enhanced depth of focus compared with longer wavelengths
• Industrial design for continuous (24/7) operation and cold (low‑thermal) processing

Applications

• Polymer cutting, marking and drilling
• Microprocessing and surface texturing
• Solar cell scribing
• PCB cutting and drilling
• Processing of materials with improved green absorption (copper, ceramics)

Family / Series
GLPP/GLPF-R Series

Specifications

• Wavelength: 515 nm
• Average power: up to 50 W
• Pulse energy: up to 100 µJ
• Pulse duration: 250 fs–5 ps (page references also include 600 fs–5 ps)
• Pulse repetition rate: 50–5500 kHz
• Beam quality (typ.): <1.3 M2

Notes
Specifications refer to the product family; exact values depend on model and configuration. Custom specifications and regional availability may be offered on request.
