Locking bolt CAOstainless steelpolyamideknurled
Add to favorites
Compare this product
Characteristics
- Type
- locking
- Material
- stainless steel, polyamide
- Other characteristics
- knurled
- Diameter
4 mm, 5 mm, 6 mm, 7 mm
(0 in, 0 in, 0 in, 0 in)- Length
5 mm, 7 mm
(0.2 in, 0.28 in)
Description

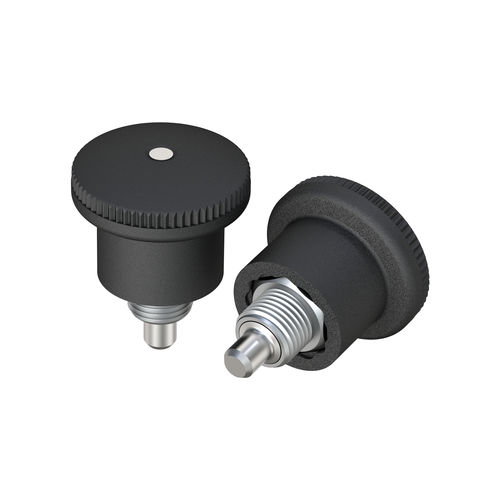

Our CAO family consists of a compact unlockable index bolt with a knurled head made of PA630GF (Polyamide 6 + 30% fiberglass) with an adjusting hexagon. The thread is made of SS (stainless steel) and the plunger, in ZCS (zinc-plated steel). Highly recommended for screwing thin-walled elements.
Usage: Locking and Positioning Pins are used when locking, indexing or securing two or more components in the desired position. A temporary fixed positioning of the component is possible, but it can be released and changed at any time by actuating the catch. No additional tools are required for its application.
