Zinc-plated steel indexing plunger CAG

lockablethreaded

Product summary

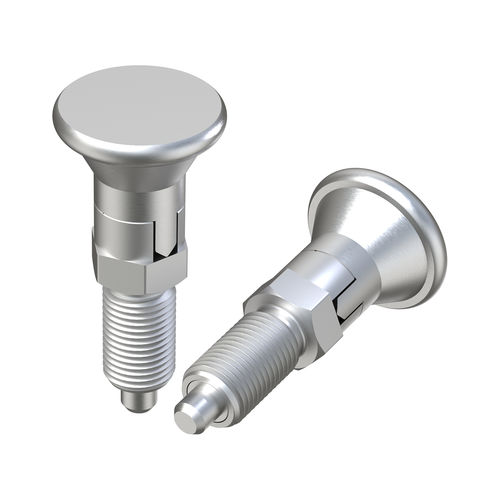

Our CAG family consists of a lockable metal indexing bolt with a conical head in ZCS (Zinc‑Plated Steel) and a hexagon adjustment. The fine‑pitch thread and the plunger are made of ZCS.

Usage
Locking and positioning pins are used to lock, index or secure two or more components in the desired position. Temporary fixed positioning of a component is possible and can be released or changed at any time by actuating the catch. No additional tools are required for application.

Documentation & compliance
Drawing PDF: available (2D drawings).
UL94: not applicable / none indicated.
IP: not applicable / none indicated.
RoHS: compliant.
Measures expressed in: Millimeters.
Video: product video available.

Table - References and main dimensions (units: millimeters)
Reference | D | d | M | H | T | L | SW
03100400080 | 22,50 | 5,00 | M10 x 1,00 | 47,50 | 5,00 | 17,00 | 12
03100400081 | 27,50 | 6,00 | M12 x 1,50 | 55,00 | 6,00 | 20,00 | 14

Characteristics / technical specifications

• Family / model: CAG
• Type: lockable indexing bolt
• Conical head material: ZCS (Zinc‑Plated Steel)
• Thread & plunger material: ZCS (Zinc‑Plated Steel)
• Adjusting feature: hexagon on head
• Thread pitch: fine pitch (see table for specific M sizes)
• RoHS: compliant
• UL94: not specified
• IP rating: not specified
• Dimensional units: millimeters
• Available references and dimensions listed in the table above
