Stainless steel indexing plunger CAA

technopolymerzinc-plated steelthreaded

Product overview

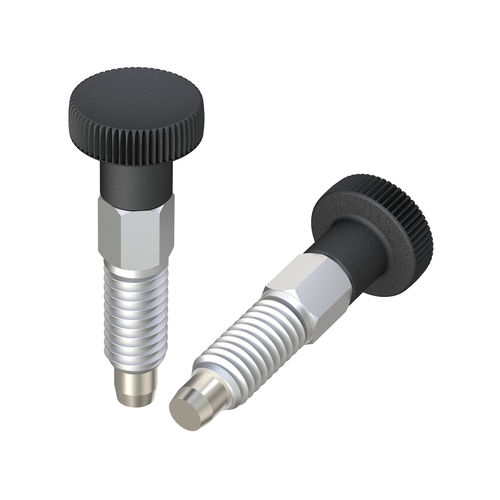

Index bolt from the CAA family composed of a knurled head made of PA6 (Polyamide 6) with an adjusting hexagon. The threaded part is stainless steel (SS) and the plunger is zinc-plated steel (ZCS). The design is non-lockable; a lockable variant is available in family CAB.

Usage

• Locking and positioning pins for indexing, securing or locating two or more components in a predefined position.
• Allows temporary fixed positioning that can be released or changed at any time by actuating the catch.
• No additional tools required for adjustment or actuation.

Compliance and documentation
2D drawing (PDF) available; product video available. RoHS: compliant. UL94: not specified. IP rating: not specified. RAL colour manufacturing: available.

Variants (table)
Reference | D | d | M | H | T | L | h | SW
03100400020 | 12,00 | 4,00 | M6 x 1,00 | 31,00 | 4,00 | 12,00 | 4,50 | 6
03100400021 | 12,00 | 4,00 | M6 x 0,75 | 31,00 | 4,00 | 12,00 | 4,50 | 6
03100400022 | 16,00 | 5,00 | M8 x 1,25 | 40,00 | 5,00 | 16,00 | 6,00 | 8
03100400023 | 16,00 | 5,00 | M8 x 1,00 | 40,00 | 5,00 | 16,00 | 6,00 | 8
03100400024 | 18,00 | 6,00 | M10 x 1,50 | 49,00 | 6,00 | 20,00 | 7,50 | 10
03100400025 | 18,00 | 6,00 | M10 x 1,00 | 49,00 | 6,00 | 20,00 | 7,50 | 10
03100400026 | 21,00 | 8,00 | M12 x 1,75 | 59,00 | 8,00 | 24,00 | 9,00 | 12
03100400027 | 21,00 | 8,00 | M12 x 1,50 | 59,00 | 8,00 | 24,00 | 9,00 | 12

Technical specifications

• Family: CAA
• Model type: Index bolt with knurled head, non-lockable
• Head material: PA6 (Polyamide 6)
• Adjusting feature: hexagon
• Thread material: SS (stainless steel)
• Plunger material: ZCS (zinc-plated steel)
• Unit of measurement: millimeters
• RoHS: compliant
• UL94: not specified
• IP rating: not specified
• Available references/sizes: see Variants table above
• Available finishes: RAL colours on request
• Documentation: 2D drawing (PDF) and product video available
