Round tube connector LTRKC

polyamidezinc-plated steel

Product description

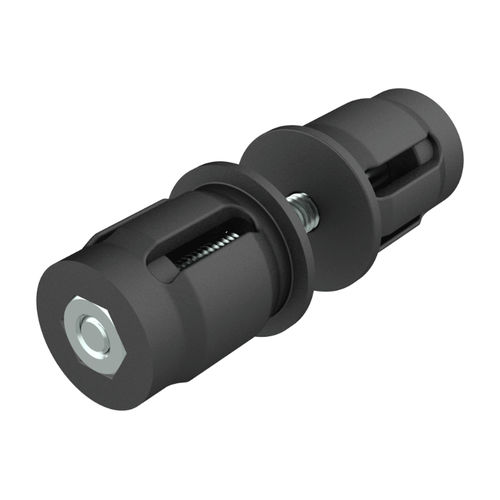

The LTRKC double linear connector connects two round tubes to form a 180° straight joint. The connector is inserted into the tubes up to the head and secured by friction: counter-rotating the tubes creates a pull-fit connection whose tensile strength depends on tube material and condition. In dry, clean, oil-free tubes with a resistant coating, high tensile strength can be obtained with relatively low clamping.

Materials and finish
Body: Polyamide (PA6). Standard colour: Black (RAL 9005). Fasteners (bolt and nut): Zinc Plated Steel (ZCS). Connectors are supplied pre-assembled.

Installation notes
Due to its significant expanding effect after installation, this connector is not recommended for thin-walled aluminium or soft plastic tubes with a wall thickness of 1 mm.

Table - References
Reference | For Tube | Tube Thickness | L | H | Metric (M)
00700900000 | 15 | 1,00 | 20,00 | 1,50 | M6
00700900001 | 16 | 1,00 | 20,00 | 1,50 | M6
00700900002 | 16 | 1,50 | 20,00 | 1,50 | M6
00700900003 | 18 | 1,00 | 20,00 | 1,50 | M6
00700900004 | 18 | 1,50 | 20,00 | 1,50 | M6
00700900005 | 20 | 1,00 | 20,00 | 1,50 | M6
00700900006 | 20 | 1,50 | 20,00 | 1,50 | M6
00700900007 | 20 | 1,00 | 20,00 | 1,50 | M6
00700900008 | 20 | 1,50 | 20,00 | 1,50 | M6
00700900009 | 23 | 1,00 | 20,00 | 1,50 | M6
00700900010 | 24 | 1,00 | 20,00 | 1,50 | M6
00700900011 | 24 | 1,50 | 20,00 | 1,50 | M6
00700900012 | 25 | 1,00 | 26,00 | 1,50 | M6
00700900013 | 25 | 1,50 | 26,00 | 1,50 | M6
00700900014 | 25 | 2,00 | 26,00 | 1,50 | M6
00700900015 | 26 | 1,00 | 26,00 | 1,50 | M6
00700900016 | 26 | 1,50 | 26,00 | 1,50 | M6
00700900017 | 26 | 2,00 | 26,00 | 1,50 | M6
00700900018 | 26 | 2,50 | 26,00 | 1,50 | M6
00700900019 | 27 | 1,00 | 26,00 | 1,50 | M6
00700900020 | 27 | 1,50 | 26,00 | 1,50 | M6
00700900021 | 27 | 2,00 | 26,00 | 1,50 | M6
00700900022 | 27 | 2,50 | 26,00 | 1,50 | M6
00700900023 | 28 | 1,00 | 26,00 | 1,50 | M6
00700900024 | 28 | 1,50 | 26,00 | 1,50 | M6
00700900025 | 28 | 2,00 | 26,00 | 1,50 | M6
00700900026 | 28 | 2,50 | 26,00 | 1,50 | M6
00700900027 | 30 | 1,00 | 26,00 | 1,50 | M6
00700900028 | 30 | 1,50 | 26,40 | 2,20 | M6
00700900029 | 30 | 2,00 | 26,00 | 1,50 | M6
00700900030 | 32 | 1,00 | 26,00 | 1,50 | M6
00700900031 | 32 | 1,50 | 26,00 | 1,50 | M6
00700900032 | 32 | 2,00 | 26,00 | 1,50 | M6
00700900033 | 32 | 2,50 | 26,00 | 1,50 | M6
00700900034 | 38 | 1,00 | 29,00 | 1,50 | M8
00700900035 | 38 | 1,50 | 29,00 | 1,50 | M8
00700900036 | 38 | 2,00 | 29,00 | 1,50 | M8
00700900037 | 40 | 1,50 | 29,00 | 1,50 | M8
00700900038 | 40 | 2,00 | 29,00 | 1,50 | M8
00700900039 | 40 | 2,50 | 29,00 | 1,50 | M8
00700900040 | 40 | 3,00 | 29,00 | 1,50 | M8

Certifications / Data

• UL94: not specified
• IP: not specified
• RoHS: compliant
• Measures expressed in: Millimetres
• Drawing PDF: available (drawing file referenced)
• Video: available

Characteristics / technical specifications

• Model: LTRKC
• Function: 2-tube transverse connector for 180° straight connections
• Material (body): Polyamide (PA6)
• Standard colour: Black (RAL 9005)
• Bolt & nut material: Zinc Plated Steel (ZCS)
• Supply condition: Supplied pre-assembled
• Not recommended for: thin-walled aluminium or soft plastic tubes with 1 mm wall thickness
• Standards: RoHS compliant
• Measurements unit: millimetres
• Available assets: technical drawing (PDF referenced), product video
