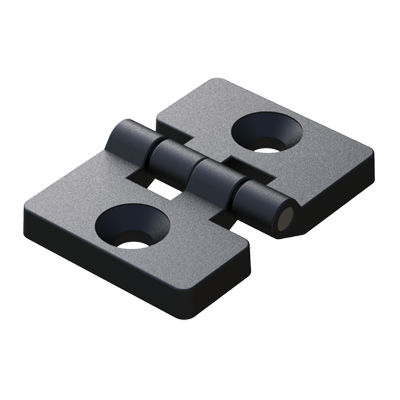

Polyamide hinge JTPAA

screw-in270°for panels

Description
The range of countersunk screw fixing symmetric hinges (model JTPAA) covers panel/thicknesses from 4 mm to 10 mm. They are designed for industrial and furniture applications such as machine guards, joining metal profiles, carpentry and cabinetmaking, providing controlled opening/closing movement while preserving a discreet appearance.

Key features

• Maximum rotation angle: 270° (models with lower angles available)
• Hinge body material: PA6 reinforced with 30% glass fiber (PA6 30% GF)
• Pin material: stainless steel
• Fixing: countersunk screw compatible with DIN 7991 for listed references
• Custom marking/logo available on request
• Maximum working resistance (Weight in Kgs) determined by an approved external laboratory

Compliance and measures

• UL94: not specified
• IP: not specified
• RoHS: compliant
• Dimensions unit: millimeters

Available references / Technical table
Reference | D x B | L | Weight (Kgs) | A | H / R | M | Type
01200100001 | 35 x 25 | 24,00 | 70 | 270º | 4,00 / 2,50 | M4 | DIN 7991
01200100002 | 47 x 25 | 30,00 | 70 | 270º | 4,00 / 2,50 | M4 | DIN 7991
01200100021 | 50 x 40 | 30,00 | 70 | 270º | 7,00 / 7,00 | M6 | DIN 7991
01200100022 | 80 x 40 | 45,00 | 95 | 270º | 7,00 / 7,00 | M6 | DIN 7991
01200100577 | 80 x 40 | 45,00 | 95 | 270º | 7,00 / 7,00 | M8 | DIN 7991

Characteristics / technical specifications

• Model: JTPAA
• Type: Symmetric hinge for countersunk screw fixing, 2-hole
• Body material: PA6 30% GF (Nylon 6 reinforced with 30% glass fiber)
• Pin: stainless steel
• Supported thickness range: 4 mm to 10 mm
• Maximum rotation angle: 270° (depends on model)
• Fastening: countersunk screw (recommended example: DIN 7991 for listed variants)
• Metric thread options by reference: M4, M6, M8
• Weight values: provided per reference in the table (Kg)
• RoHS: compliant; UL94 and IP: not specified
• Units: millimeters
• 2D drawing (PDF) and product video available
