Profile assembly adjustable angle connector THCYE

Product description

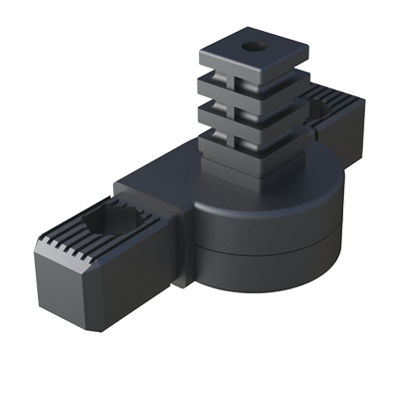

The THCYE 3-way hinge connector is designed to join three square tubes. It provides an adjustable articulation with angle ranges of 0°–190° or 45°–200° depending on the reference and includes seating for hexagonal nuts on the horizontal pins.

Drawing / Certifications

• Drawing PDF: available
• UL94: -
• IP: -
• RoHS: Yes
• Measures expressed in: Millimeters
• Video: available

References
Reference | For Tube | Tube Thickness | L / H | Angle (A) [Type] | Nut Spot (SW)
02300400059 | 20 x 20 | 1.50 | 35.00 / 42.00 | 0° to 190° [1] | SW 10
02300400066 | 30 x 30 | 2.00 | 41.00 / 41.00 | 0° to 190° [1] | SW 13
02300400067 | 30 x 30 | 2.00 | 41.00 / 41.00 | 45° to 200° [1] | SW 13

Characteristics / Technical specifications

• Function: hinge connector to join three square tubes
• Available angle ranges: 0°–190° or 45°–200° (by reference)
• Material: Nylon (PA6) with glass-fiber reinforcement
• Compatible tube sizes: 20 x 20 mm, 30 x 30 mm
• Tube thickness options: 1.50 mm, 2.00 mm
• Nut spot sizes: SW 10, SW 13
• RoHS: compliant
• Documentation: 2D drawings (PDF) and product video available
