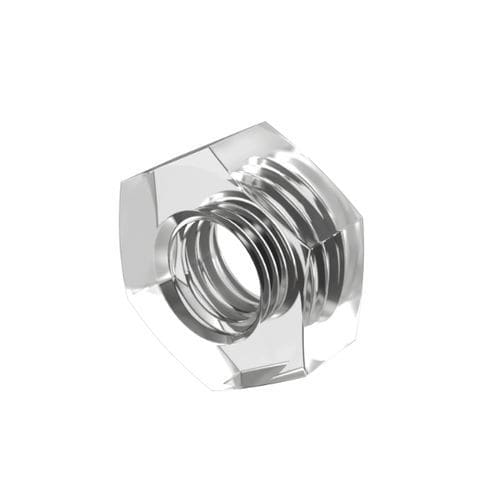

Hexagonal nut ENB

ceramicPVCPFA

Product overview
ENB technical hexagonal nuts (similar to DIN 34814 (934) / ISO 4032) are manufactured in a wide range of engineering plastics and technical ceramic for industrial applications such as automotive, electronics, chemical, machinery, construction and industrial interiors. Available in metric threads M2–M24 with multiple diameter/height variants, these nuts provide reduced weight versus metal while meeting the mechanical and chemical requirements defined by the chosen material.

Materials comparison

• PVC: Up to 60 °C · Medium mechanical strength · Very good chemical resistance
• PP: Up to 65 °C · Good and flexible mechanical strength · Very good chemical resistance
• RENY: Up to 105 °C · Very high mechanical strength (reinforced) · Good chemical resistance
• PC: Up to 115 °C · Very good impact strength · Medium chemical resistance
• PA-G: Up to 120 °C · High mechanical strength · Medium chemical resistance
• PEEKGF30: Up to 130 °C · Very high mechanical strength (30% glass fiber) · Good chemical resistance
• PVDF: Up to 140 °C · Good mechanical strength · Excellent chemical resistance
• PPS: Up to 200 °C · Very good mechanical strength · Excellent chemical resistance
• PEEK: Up to 260 °C · Very high mechanical strength · Excellent chemical resistance
• PFA: Up to 260 °C · Medium mechanical strength · Excellent chemical resistance
• PTFE: Up to 260 °C · Low mechanical strength (self-lubricating) · Excellent chemical resistance
• PI: Up to 300 °C · High mechanical strength · Very good chemical resistance
• CERAMIC: >1,500 °C · Extremely high mechanical strength · Excellent chemical resistance

Additional product information

• Download technical information / Drawings: available (2D drawings)
• UL94: HB, V2, V0 classifications available depending on material
• IP: not specified
• RoHS: compliant
• Measures expressed in: Millimetres
• Media: product video (MP4) and render images available

Available references (examples)

• Range: Metric threads M2 to M24, multiple F and H dimensions and material variants
• 01703000700 — M2 · F 4.00 · H 1.60 · PC
• 01703000738 — M5 · F 8.00 · H 4.00 · PVDF
• 01703000769 — M10 · F 17.00 · H 8.00 · PVDF
• 01703000776 — M12 · F 19.00 · H 10.00 · PVDF
• 03800200514 — M24 · F 36.00 · H 19.00 · HDPE / PP / POM / PVDF / PVC variants

Specifications

• Standards: DIN 34814 (934) and ISO 4032 where indicated
• Materials: from standard engineering plastics to high-performance polymers and technical ceramic
• Temperature resistance: see Materials comparison
• UL94: classifications depend on material
• RoHS: compliant
• Measurement units: millimetres
• Available files: 2D drawings (PDF), video (MP4), render images
