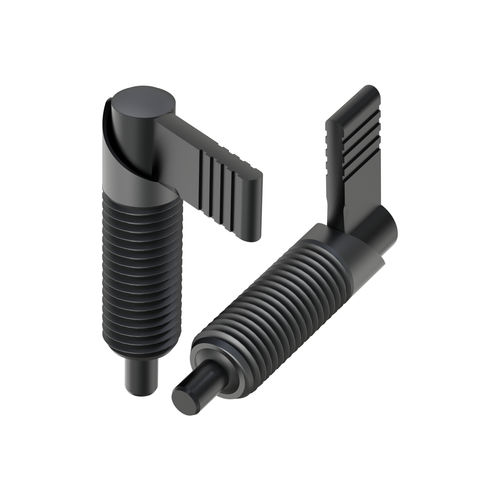

Stainless steel indexing plunger CAItechnopolymerzinc-plated steellockable
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel, technopolymer, zinc-plated steel
- Options
- lockable, threaded
- Pin diameter
5 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0 in, 0 in, 0 in, 0 in, 0 in)
Description
Product description
Our CAI family consists of a lockable L‑head index bolt available in SS (stainless steel) or S (steel) versions, some with an optional PA66 (Polyamide 66) cap. The design has no adjusting hexagon. Thread material: SS. Plunger material: ZCS (zinc‑plated steel).
Usage
Compliance / Certifications
Measures
Measures expressed in: Millimeters
Documentation & Media
Drawing: PDF available (2D drawings). Video: Product video available.
References and dimensions (table)
Reference | D | d | M | H | T | L
03100400100 | 26,20 | 5,00 | M12 x 1,50 | 39,50 | 8,00 | 26,00
03100400101 | 32,00 | 6,00 | M12 x 1,50 | 39,00 | 8,00 | 26,00
03100400102 | 32,00 | 8,00 | M12 x 1,50 | 39,00 | 8,00 | 26,00
03100400103 | 42,00 | 6,00 | M16 x 1,50 | 46,00 | 10,00 | 30,00
03100400104 | 42,00 | 8,00 | M16 x 1,50 | 46,00 | 10,00 | 30,00
03100400105 | 42,00 | 12,00 | M16 x 1,50 | 46,00 | 10,00 | 30,00
03100400106 | 52,00 | 8,00 | M20 x 1,50 | 57,00 | 12,00 | 36,00
03100400107 | 52,00 | 10,00 | M20 x 1,50 | 57,00 | 12,00 | 36,00
03100400108 | 52,00 | 12,00 | M20 x 1,50 | 57,00 | 12,00 | 36,00
Technical characteristics / specifications
Our CAI family consists of a lockable L‑head index bolt available in SS (stainless steel) or S (steel) versions, some with an optional PA66 (Polyamide 66) cap. The design has no adjusting hexagon. Thread material: SS. Plunger material: ZCS (zinc‑plated steel).
Usage
- Locking and positioning pins for locking, indexing or securing two or more components in the required position.
- Provides temporary fixed positioning that can be released and changed by actuating the catch.
- No additional tools required for operation.
Compliance / Certifications
- UL94: Not specified
- IP: Not specified
- RoHS: Compliant
Measures
Measures expressed in: Millimeters
Documentation & Media
Drawing: PDF available (2D drawings). Video: Product video available.
References and dimensions (table)
Reference | D | d | M | H | T | L
03100400100 | 26,20 | 5,00 | M12 x 1,50 | 39,50 | 8,00 | 26,00
03100400101 | 32,00 | 6,00 | M12 x 1,50 | 39,00 | 8,00 | 26,00
03100400102 | 32,00 | 8,00 | M12 x 1,50 | 39,00 | 8,00 | 26,00
03100400103 | 42,00 | 6,00 | M16 x 1,50 | 46,00 | 10,00 | 30,00
03100400104 | 42,00 | 8,00 | M16 x 1,50 | 46,00 | 10,00 | 30,00
03100400105 | 42,00 | 12,00 | M16 x 1,50 | 46,00 | 10,00 | 30,00
03100400106 | 52,00 | 8,00 | M20 x 1,50 | 57,00 | 12,00 | 36,00
03100400107 | 52,00 | 10,00 | M20 x 1,50 | 57,00 | 12,00 | 36,00
03100400108 | 52,00 | 12,00 | M20 x 1,50 | 57,00 | 12,00 | 36,00
Technical characteristics / specifications
- Family / Series: CAI
- Type: L‑head lockable index bolt (indexing / positioning pin)
- Head: L‑head (lockable)
- Cap material: PA66 (Polyamide 66) where applicable
- Thread material: SS (stainless steel)
- Plunger material: ZCS (zinc‑plated steel)
- Also available in: S (Steel) with PA66 cap option
- No adjusting hexagon
- Usage: locking, indexing or securing components; temporary fixed positioning released by catch
- RoHS: Compliant
- Measures: millimeters
- 2D drawings (PDF) and product video available
