Square tube connector THCBA

stainless steelzinc-plated steelpolyamide

Product overview

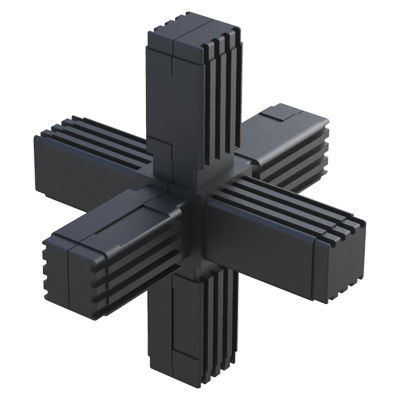

Two-piece 6-way connector designed for assembly of square tubes. Body in PA6 (Nylon). Supplied without internal core or with an internal core in steel, stainless steel 1.4301 (AISI 304) or zinc-coated steel. Suitable for frame constructions; achievable static load depends on presence and type of internal core.

Compliance and additional info

• UL94: not applicable / not specified
• IP: not applicable / not specified
• RoHS: yes
• Measures expressed in: Millimeters
• Drawing: available (PDF download on product page)
• Video: available

Available references (table)
Reference | For Tube | Tube Thickness | L | H
00201206447 | 20 x 20 | 1.50 | 36.00 | 20.00
00201206457 | 25 x 25 | 1.50 | 52.00 | 25.00
00201206465 | 30 x 30 | 2.00 | 47.00 | 30.00

Characteristics / technical specifications

• Family / Model: THCBA
• Type: 6-way connector for square tubes (two-piece)
• Body material: PA6 (Nylon)
• Internal core options: none; steel; stainless steel 1.4301 (AISI 304); zinc-coated steel
• Available tube sizes and references: 20x20 (ref. 00201206447), 25x25 (ref. 00201206457), 30x30 (ref. 00201206465)
• Typical dimensions per reference: tube thickness, L and H (see table above)
• RoHS compliant
• Measurement units: millimeters
• Documentation: 2D drawings (PDF) and product video available
