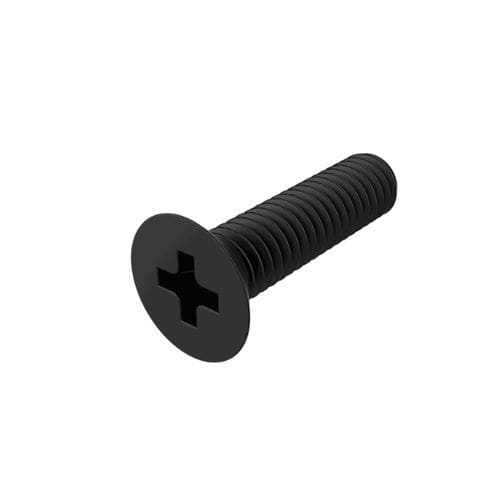

Fastening screw ETC

automotivecountersunk headPhillips

Overview
Phillips countersunk screws from the ETC technical screws family (similar to DIN 34811 / ISO 7046). Manufactured in high-performance thermoplastic materials for demanding industrial applications in automotive, electronics, chemical, machinery, construction and industrial interior sectors. Available in multiple thread sizes and lengths to meet assembly requirements while enabling weight reduction compared with metal fasteners where applicable.

Materials summary

• PVDF: Service temperature up to 150 °C · Good mechanical properties · Excellent chemical resistance
• PEEK: Service temperature up to 300 °C · Very high mechanical performance · Excellent chemical resistance
• RENY: Service temperature up to 170 °C · Reinforced with very high mechanical performance · Good chemical resistance
• PC: Service temperature up to 135 °C · Very good impact resistance · Medium chemical resistance
• PPS: Service temperature up to 220 °C · Very good mechanical properties · Excellent chemical resistance
• PAMXD6GF50 / PEEKGF30: Glass-fiber reinforced variants for increased stiffness and dimensional stability

Technical information / Certifications

• Standards: similar to DIN 34811 and ISO 7046
• UL94 classifications: HB, V2, V0 (material dependent)
• RoHS: compliant
• Dimensions and tolerances: measurements expressed in millimetres
• Drawings and downloads: 2D drawings (PDF) available on product page
• Multimedia: product images and an MP4 product video referenced

References and sizing
Extensive reference table available with multiple part numbers covering metric threads M2 to M8, lengths (examples: 4 mm to 35 mm) and head dimensions. Materials options per reference include PVDF, PEEK, PEEKGF30, RENY, PC, PPS and PAMXD6GF50. Sample references on the product page illustrate combinations of thread, length, head size and material.

Additional remarks

• No EAN or price displayed on the scraped page
• Product video and technical downloads are referenced on the product page
• IP rating not specified on the page

Technical specifications

• Series: ETC technical screws (similar to DIN 34811 / ISO 7046)
• Available metric threads: M2, M2.5, M2.6, M3, M3.5, M4, M5, M6, M8
• Length (L) and head dimension (A): multiple values per reference (examples: L from 4 mm to 35 mm; A examples 4 mm to 16 mm)
• Materials: PVDF, PEEK, PEEKGF30, RENY, PC, PPS, PAMXD6GF50
• Typical thermal resistance: PVDF up to 150 °C; PEEK up to 300 °C; RENY up to 170 °C; PC up to 135 °C; PPS up to 220 °C
• Certifications: UL94 (HB, V2, V0 depending on material); RoHS compliant
• Units: millimetres
• Downloads: technical drawings (PDF) and product video referenced on page
