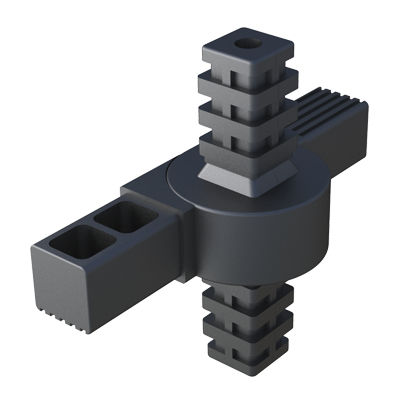

Profile assembly adjustable angle connector THCCC

Description
This 4-way hinge connector THCCC is designed to join four square tubes. It provides an adjustable articulation on the horizontal axis with angle ranges depending on the reference (0º–190º or 0º–180º). The vertical pin rotates around its axis (no tilt) and can be replaced to fit different tube geometries. Material: Nylon (PA6).

Compliance & documents

• RoHS: Yes
• UL94: Not specified / not applicable
• IP rating: Not specified / not applicable
• 2D drawing (PDF) and demonstration video available

Measures
Measures expressed in: Millimeters

Available references / Dimensions (table)
Reference | For Tube | Tube Thickness | L / H | Angle (A) [Type]
02300400218 | 25 x 25 | 1.50 | 38.00 / 42.00 | 0º to 190º [1]
02300400219 | 25 x 25 | 1.50 | 38.00 / 42.00 | 0º to 180º [4]
02300400228 | 40 x 40 | 2.00 | 49.00 / 42.50 | 0º to 180º [3]

Resources
2D drawing available (PDF). Product video available demonstrating assembly and movement.

Characteristics / Technical specifications

• Model / Family: THCCC
• Application: Connector / hinge for square tubes (4-way)
• Material: Nylon (PA6)
• Horizontal angle ranges: 0º–190º or 0º–180º depending on reference
• Vertical pin: Rotational only, replaceable for different tube sections
• Units: Millimeters
• RoHS: Compliant
• UL94: Not specified
• IP rating: Not specified
• Available references and key dimensions: 02300400218 (25 x 25, thickness 1.50, L/H 38.00/42.00, 0º–190º), 02300400219 (25 x 25, thickness 1.50, L/H 38.00/42.00, 0º–180º), 02300400228 (40 x 40, thickness 2.00, L/H 49.00/42.50, 0º–180º)
