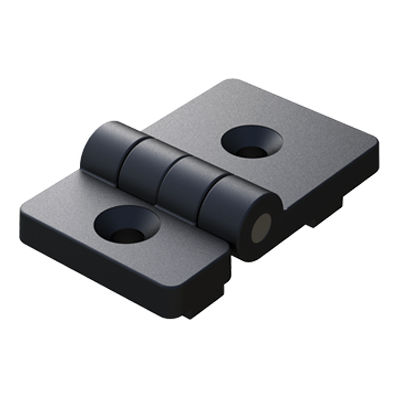

Polyamide hinge JTPHA

270°for aluminum profilesfor panels

Product overview
This asymmetric countersunk-screw hinge (model JTPHA) supports panel/thicknesses from 4 mm to 10 mm and is designed for industrial applications such as machine guarding, joining metal or aluminium profiles, joinery and furniture where precise opening/closing function and discreet appearance are required.

Features

• Base ribs provide guidance, accurate positioning and quick assembly to connect aluminium profiles.
• Maximum rotation angle: 270° (variants with lower angles available).
• Body material: PA6 30% GF (Nylon 6 reinforced with 30% glass fiber).
• Pin material: stainless steel.
• Customisation: logo marking available on request.
• Maximum working resistance (weight, kg) is an experimental value certified by an external laboratory.

Compliance & general info
UL94: not specified
IP: not specified
RoHS: compliant
Dimensions unit: millimeters
Video: available on product page

Variants (table)
Reference | D x B | L | Weight (Kgs) | Angle | A | H / R | M / Type | h1 / h2 | b1 / b2
01200100587 | 65 x 40 | 37,50 | 70 | 270º | 7,00 / 7,00 | 7,00 / 7,00 | M6 (DIN 7991) | 1,50 / 1,50 | 8,00 / 8,00
01200100588 | 65 x 40 | 37,50 | 70 | 270º | 7,00 / 7,00 | 7,00 / 7,00 | M6 (DIN 7991) | 1,50 / 3,00 | 10,00 / 10,00
01200100589 | 65 x 40 | 37,50 | 70 | 270º | 7,00 / 7,00 | 7,00 / 7,00 | M6 (DIN 7991) | 3,00 / 3,00 | 10,00 / 10,00

Drawing & media
2D drawing (PDF) available. Product render, technical drawing image and product video (MP4) available on the product page.

Technical specifications

• Brand: ISC Plastic Parts
• Model/Reference: JTPHA
• Type: Asymmetric hinge with 2 countersunk screw holes
• Thickness range: 4 mm to 10 mm
• Maximum rotation angle: 270º (other angles available)
• Body material: PA6 30% GF (Nylon 6 + 30% glass fiber)
• Pin: stainless steel
• Screw/thread: M6 (DIN 7991)
• Measures unit: millimeters
• RoHS: compliant
• Maximum working resistance (weight kg): value from external certified laboratory
• Variants: see table above (01200100587, 01200100588, 01200100589)
