Threaded fitting LJEZ

Product description

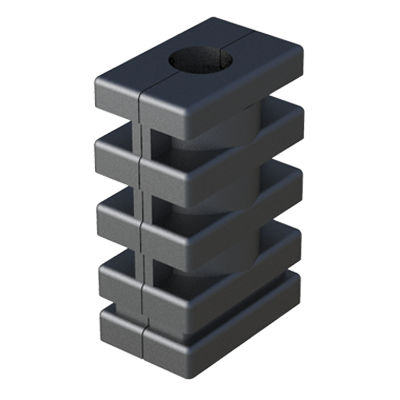

The LJEZ straight connector is a two-piece expander designed to join two rectangular tubes. Manufactured in Nylon (PA6), it features two cavities to receive hexagonal nuts. The nut(s) can be supplied in different configurations: without nuts, nut up, nut down, or both nuts. An internal metal core can be included as an option to increase insertion stiffness.

Certifications / conformity

• RoHS: compliant
• UL94: not specified
• IP: not specified

Measures
Measures expressed in: Millimeters. See the references table for dimensions and tube compatibility.

Multimedia
Product render, 2D technical drawing (PDF) and demonstration video available.

Available references and dimensions
Reference | For Tube | Tube Thickness | L | E / H | Nut Spot (SW) / Metric (M)
02300400013 | 30 x 15 | 1,50 | 42,00 | 32,00 / 12,00 | SW 10
02300400010 | 30 x 15 | 1,50 | 43,00 | 31,80 / 11,80 | SW 8
02300400014 | 30 x 20 | 1,50 | 41,00 | 32,00 / 12,00 | SW 10
00300401065 | 30 x 20 | 1,50 | 41,50 | 30,00 / 10,00 | SW 13
02300400011 | 30 x 20 | 2,00 | 46,00 | 32,00 / 12,00 | SW 10
02300400004 | 35 x 25 | 1,50 | 41,00 | 30,00 / 10,00 | SW 17
02300400012 | 40 x 15 | 2,00 | 42,50 | 33,80 / 13,80 | SW 8
00300401067 | 40 x 20 | 1,50 | 42,00 | 30,00 / 10,00 | SW 13
00300401068 | 40 x 25 | 2,00 | 42,00 | 30,00 / 10,00 | SW 17
02300400005 | 50 x 25 | 1,20 to 1,60 | 42,00 | 30,00 / 10,00 | SW 17
02300400006 | 50 x 25 | 2,00 | 37,00 | 25,00 / 8,50 | SW 17
00300401069 | 50 x 30 | 2,00 | 42,50 | 30,00 / 10,10 | SW 17
02300400008 | 60 x 20 | 2,00 | 42,00 | 30,00 / 12,00 | SW 13
00300401070 | 60 x 30 | 2,00 | 40,00 | 30,00 / 10,00 | SW 17
02300400009 | 60 x 40 | 2,00 | 39,00 | 26,00 / 9,00 | SW 17

Characteristics / technical specifications

• Family / model: LJEZ
• Brand: ISC Plastic Parts
• Material: Nylon (PA6)
• Type: straight expander connector for rectangular tubes, two-piece
• Designed with 2 cavities for hexagonal nuts; nut sizes depend on reference (SW 8 / SW 10 / SW 13 / SW 17)
• Supply options: without nuts, nut up, nut down, both nuts
• Optional internal metal core for increased insertion rigidity
• Measures: millimeters
• Compatibility: can be combined with articulated connectors for different sections/dimensions
• Recommendation: perform sample tests to verify pull and assembly behavior depending on tube material, tolerances and tightening torque
• RoHS: compliant
